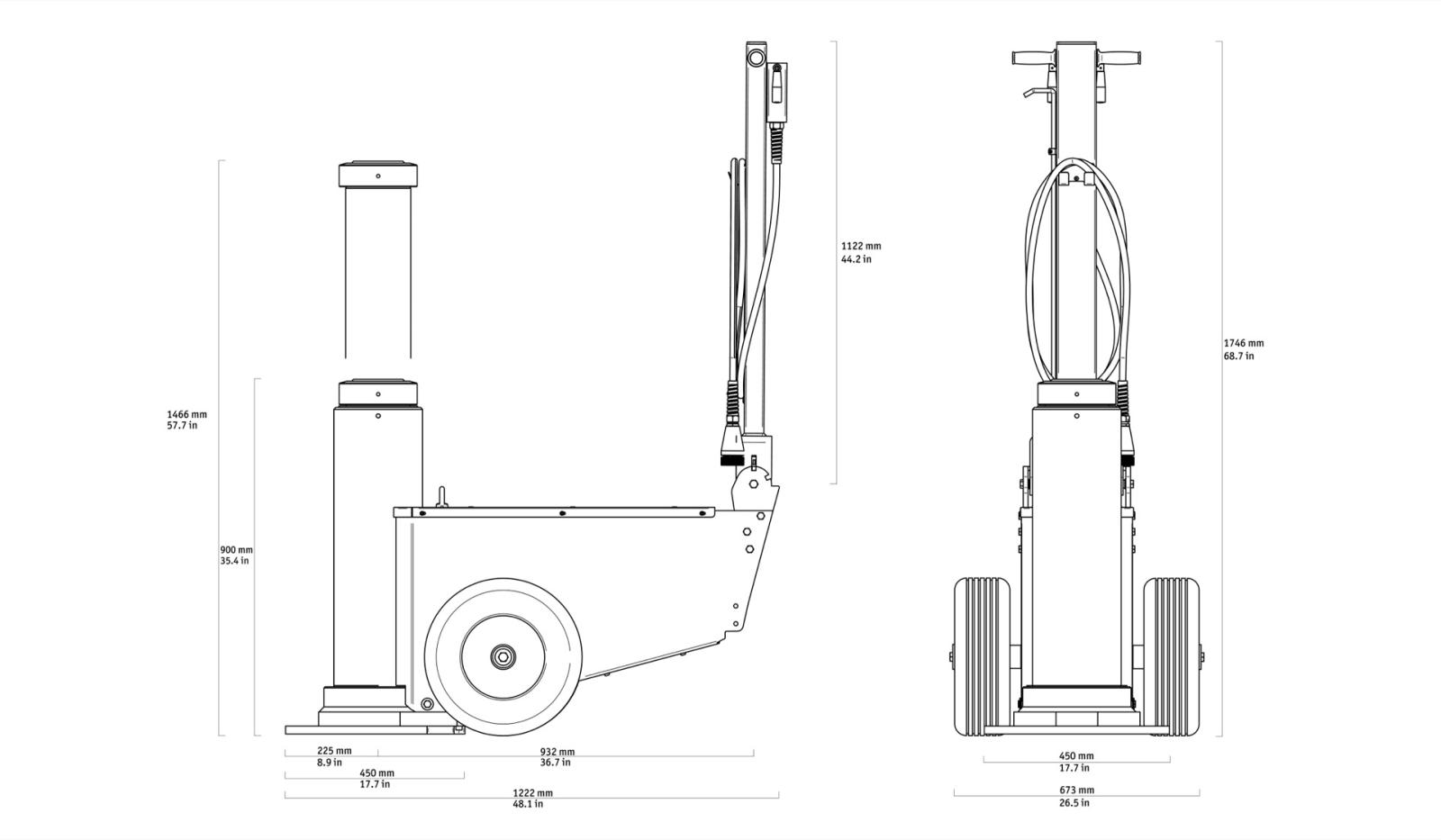

M100-90 - Mining heavy duty air-hydraulic jack
Jack designed for use with mining equipment.
Remote control included.
M100-90 main features:
Light, compact, easy to handle
Folding handle
Pneumatic tyres for any surface
Capacity:
100 t
110.2 ton
Net weight:
294 Kg
648 lb
Working air pressure:
10-12 bar
145-174 psi
Air consumption:
600 nl/min
Stroke:
566 mm
22.3 in
Min. height:
900 mm
35.4 in
Number of pistons:
1
Pistons stroke:
566 mm
22.3 in
Compatible accessories:
Extension A02421
Extension A02422
Extension A02423
Plate A04495
Safety locking device kit A07350
Extension holder A06051
Extension holder A06052
