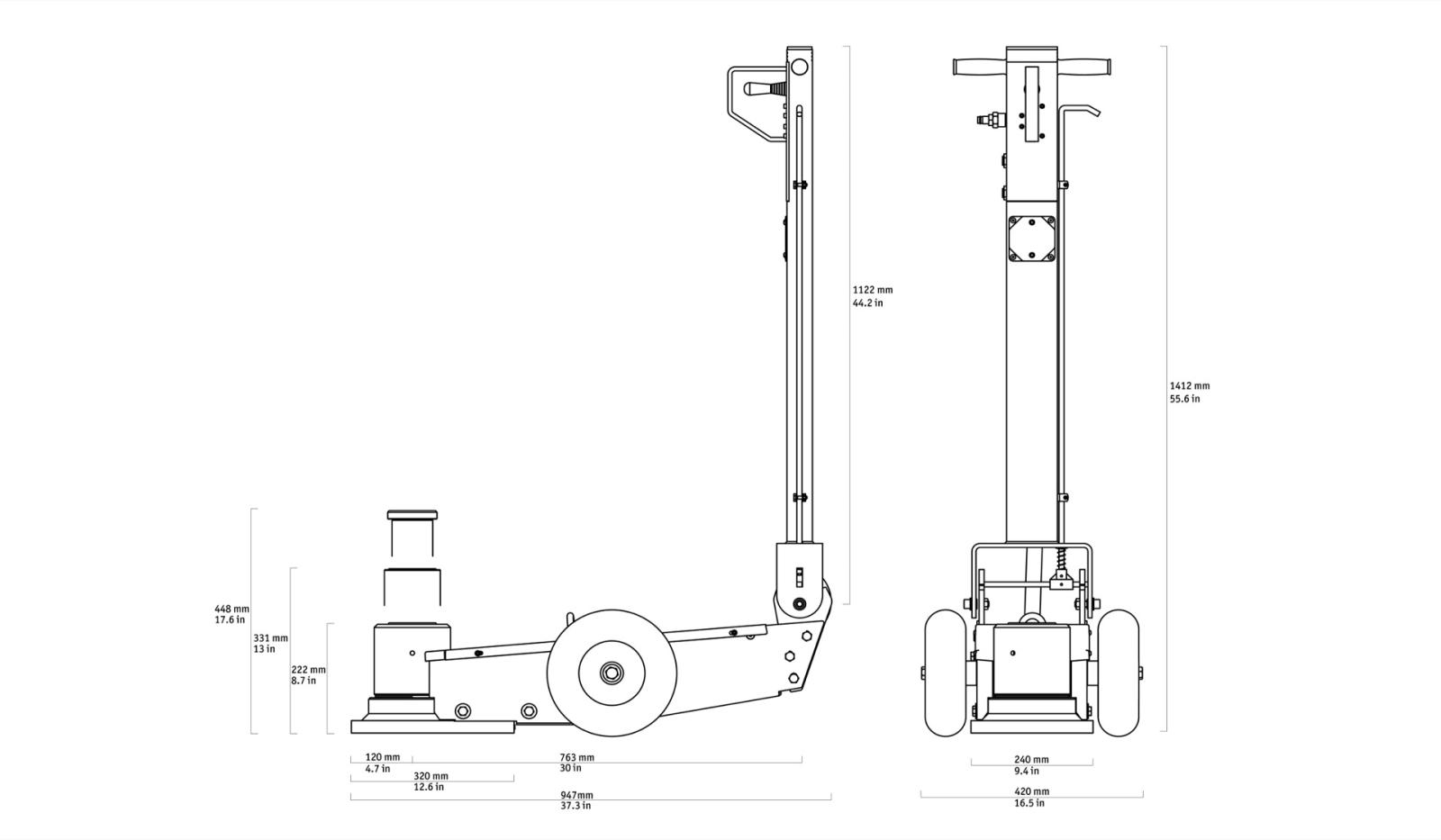

M60-22 - Mining heavy duty air-hydraulic jack
Jack designed for use with mining equipment.
Capacity:
60/30 t
66.1/33.1 ton
Net weight:
93 kg
205 lb
Working air pressure:
10-12 bar
145-174 psi
Air consumption:
600 Nl/min
Stroke:
226 mm
8.9 in
Min. height:
222 mm
8.7 in
Number of pistons:
2
Pistons stroke:
109 - 117 mm
4.3 - 4.6 in
Compatible accessories:
Extension holder A06053
Extension holder A06054
Remote control A00452
Extension A04405
Extension A02432
Extension A02434
Extension A02436
Tilting Extension A04492
Tilting Extension A08230
Tilting Extension A08232
Tilting Extension A08234
