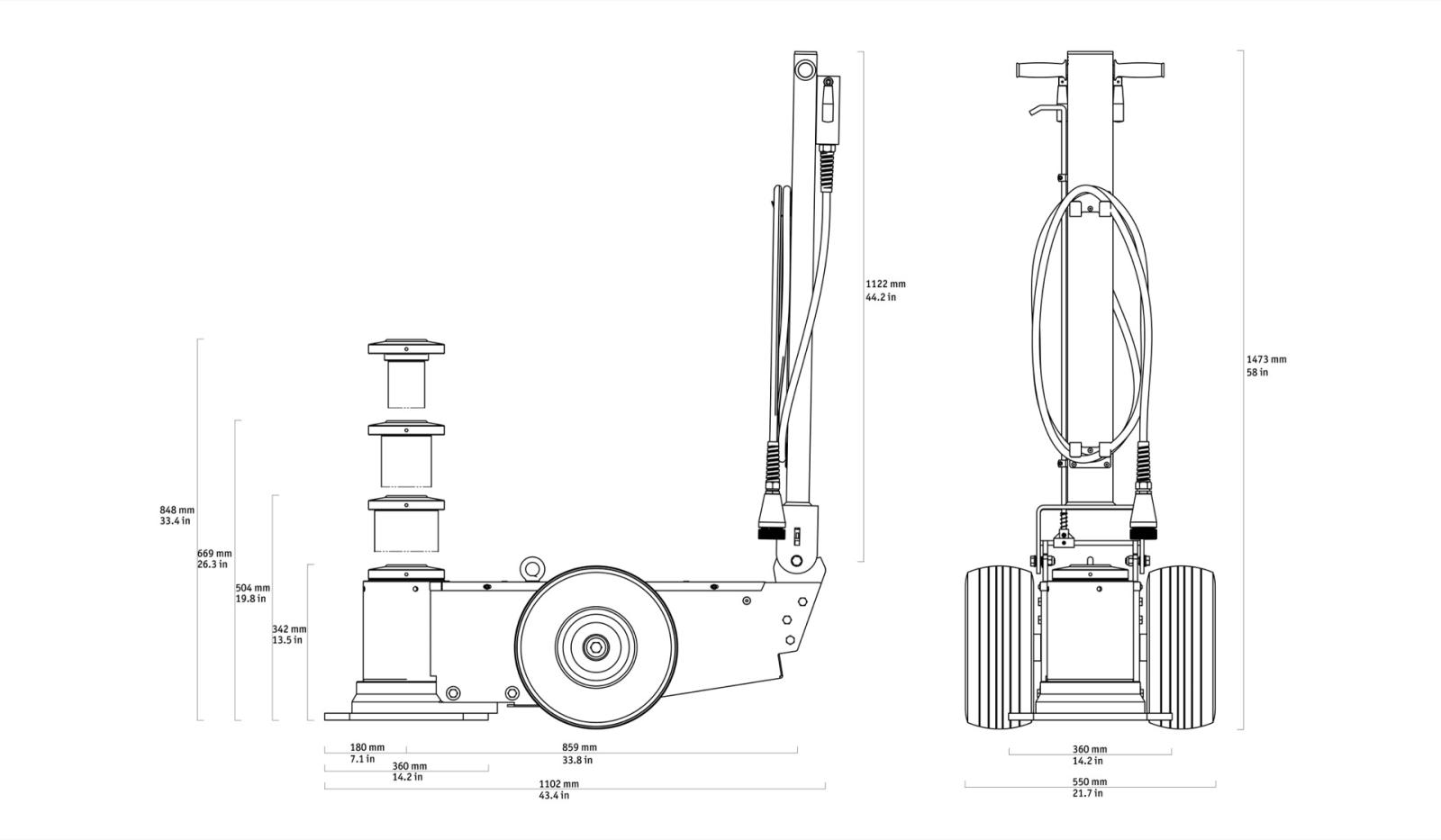

M80-31 - Mining heavy duty air-hydraulic jack
Jack designed for use with mining equipment.
Remote control included.
M80-31 main features:
Light, compact, easy to handle
Folding handle
Pneumatic tyres for any surface
Capacity:
80/50/25 t
88.2/55.1/27.6 ton
Net weight:
162 Kg
357 lb
Working air pressure:
10-12 bar
145-174 psi
Air consumption:
600 nl/min
Stroke:
506 mm
19.9 in
Min. height:
342 mm
13.5 in
Number of pistons:
3
Pistons stroke:
162 - 165 - 179 mm
6.4 - 6.5 - 7 in
Compatible accessories:
Extension A04405
Extension A02432
Extension A02434
Extension A02436
Tilting Extension A04492
Safety locking device kit A00790
Extension holder A06053
Extension holder A06054
Tilting Extension A08230
Tilting Extension A08232
Tilting Extension A08234
