YAK 315/L Thin profile air hydraulic jack

YAK 315/L Thin profile air hydraulic jack

Air hydraulic jack for heavy vehicles, practical and easy to handle. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load.

Ideal for workshops, mobile workshops, tyre repairers and bodywork shops.

Technical data

Capacity:
60/30/18 t
66.1/33.1/19.8 ton
Net weight:
46 Kg
101 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
400 nl/min
Max stroke:
185 mm
7.3 in
Min. height:
150 mm
5.9 in
Number of pistons:
3
Pistons stroke:
63 - 56 - 66 mm
2.5 - 2.2 - 2.6 in

Jack applications:

  • Road Tractors
  • Lorries 3
  • Articulated lorries 1
  • Articulated lorries 2
  • Special vehicles
  • Buses 1
  • Buses 2
  • Buses 3
  • Semi-trailers 1
  • Semi-trailers 2
  • Semi-trailers 3
  • Lorries 2
  • Lorries 1

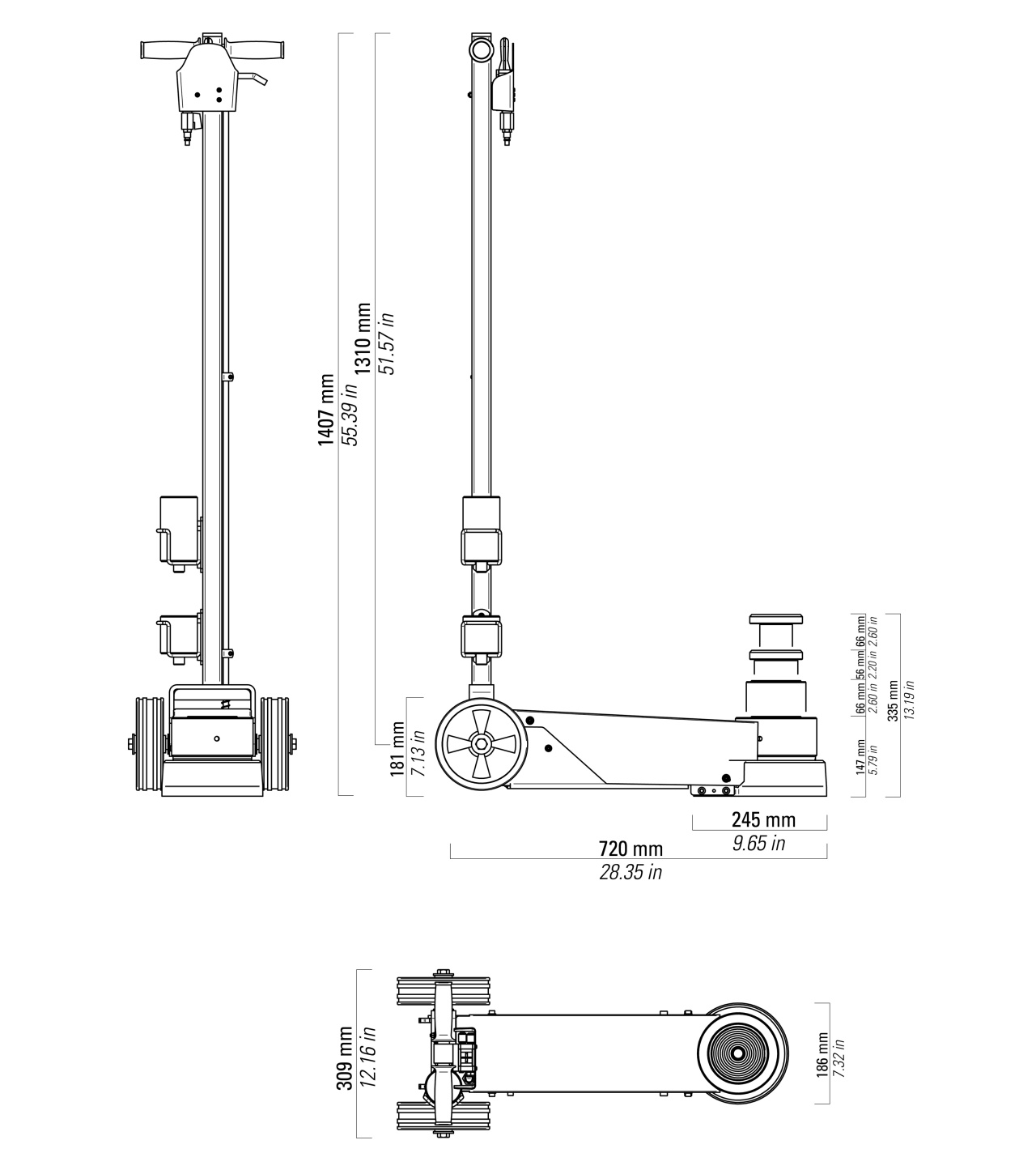

Size and dimensions

Thin profile air hydraulic jack - YAK 315/L print
