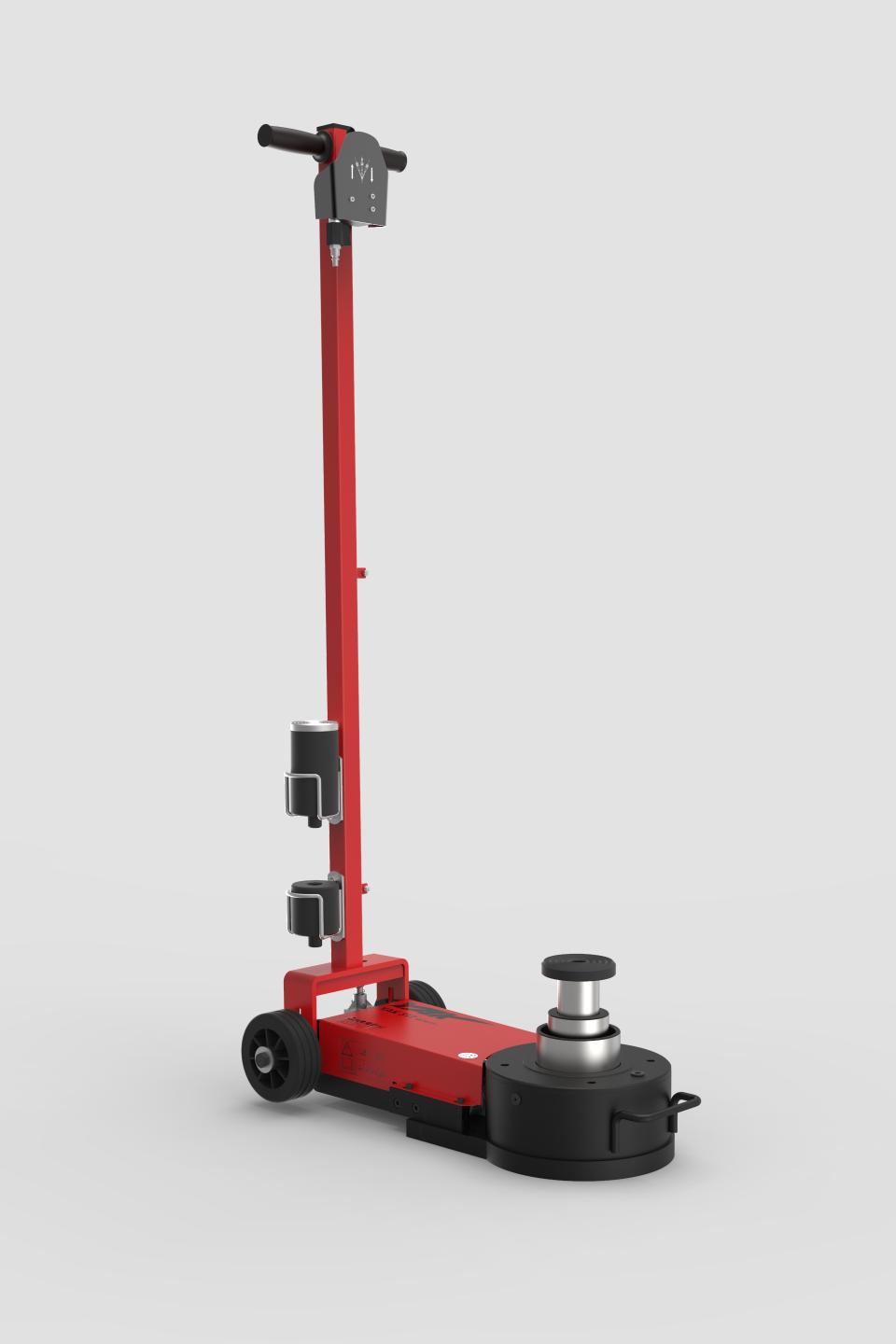

YAK 312 Air hydraulic jack

YAK 312 Air hydraulic jack

Practical and effective air hydraulic jacks.The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load.

Specific for buses, coaches and public transport vehicles.

Technical data

Capacity:
60/30/15 t
66.1/33.1/16.5 ton
Net weight:
50 Kg
110 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
600 nl/min
Max stroke:
135 mm
5.3 in
Min. height:
120 mm
4.7 in
Number of pistons:
3
Pistons stroke:
40 - 45 - 50 mm
1.6 - 1.8 - 2 in

Jack applications:

  • Buses 1
  • Buses 2
  • Buses 3
  • Articulated lorries 1
  • Articulated lorries 2
  • Lorries 3
  • Road Tractors
  • Semi-trailers 3
  • Semi-trailers 2
  • Semi-trailers 1

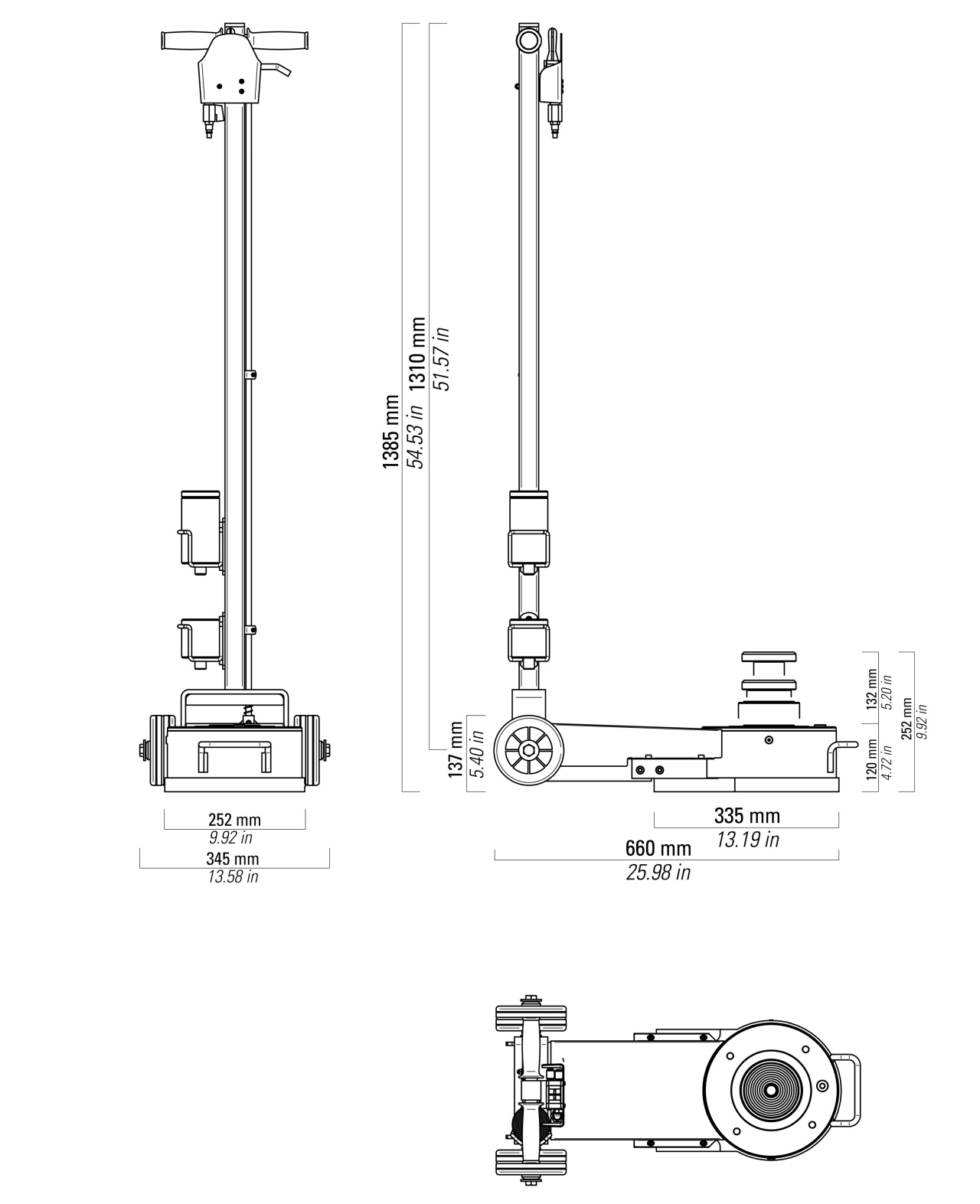

Size and dimensions

Air hydraulic jack - YAK 312 print
