YAK 217/P Portable Air-hydraulic jack

YAK 217/P Portable Air-hydraulic jack

Air hydraulic jacks for heavy vehicles, lightweight and easy to handle, with removable handle. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load.

Our portable series par “excellence”, all the reliability and practicality of our jacks in a more compact version. Ideal for keeping on board the vehicle and for who provides road assistance. They can work with the vehicles’ own compressors.

Technical data

Capacity:
40/20 t
44.1/22 ton
Net weight:
37 Kg
82 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
400 nl/min
Max stroke:
171 mm
6.7 in
Min. height:
170 mm
6.7 in
Number of pistons:
2
Pistons stroke:
83 - 88 mm
3.3 - 3.5 in

Jack applications:

  • Road Tractors
  • Lorries 1
  • Lorries 2
  • Lorries 3
  • Articulated lorries 1
  • Articulated lorries 2
  • Special vehicles

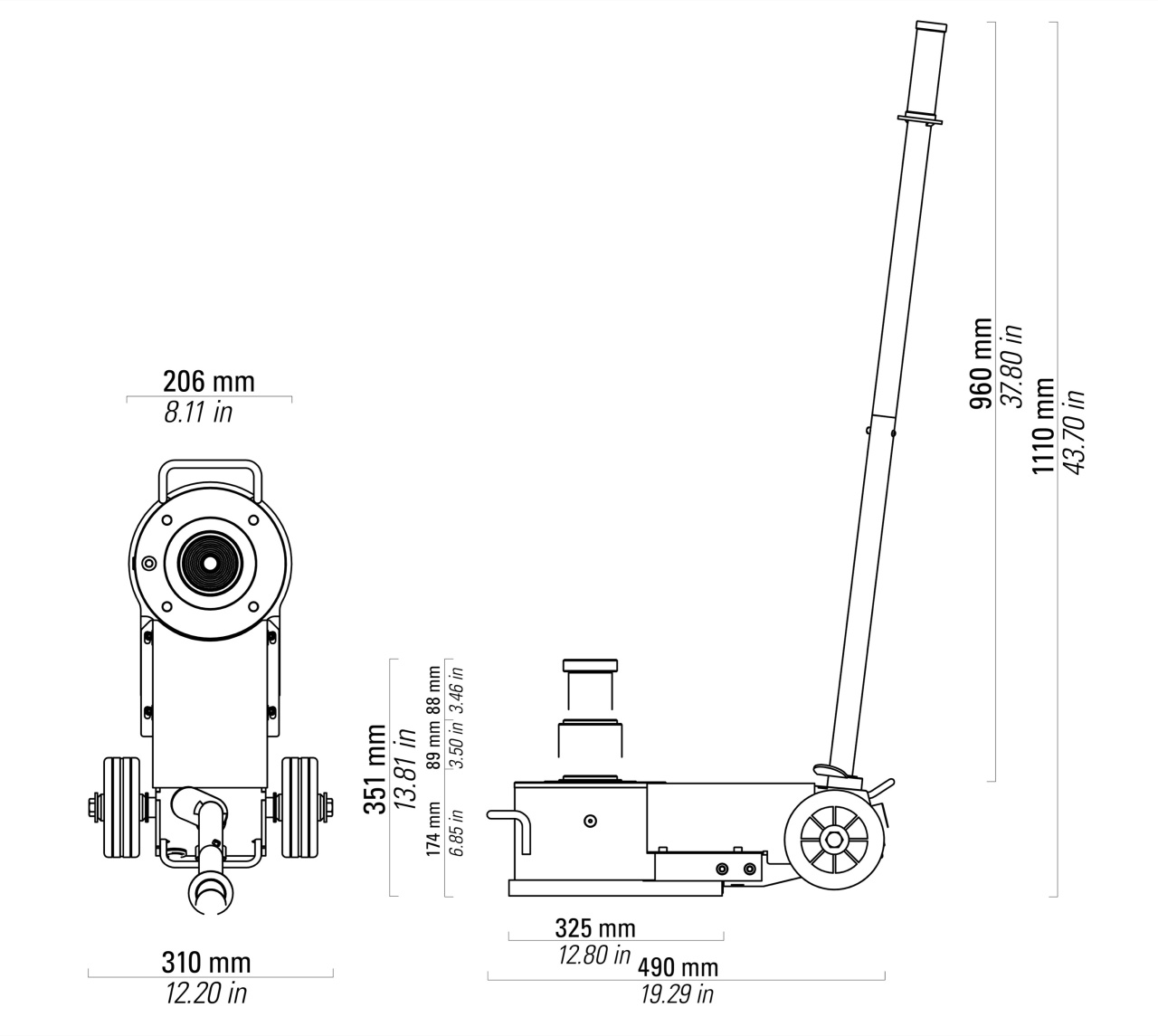

Size and dimensions

Portable Air-hydraulic jack - YAK 217/P print
