YAK 222/N Air hydraulic jack

YAK 222/N Air hydraulic jack

Air hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements.

Ideal for workshops, tyre repairers and bodywork shops.

Technical data

Capacity:
60/30 t
66.1/33.1 ton
Net weight:
71 Kg
157 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
600 nl/min
Max stroke:
230 mm
9.1 in
Min. height:
220 mm
8.7 in
Number of pistons:
2
Pistons stroke:
110 - 120 mm
4.3 - 4.7 in

Jack applications:

  • Road Tractors
  • Semi-trailers 1
  • Semi-trailers 2
  • Semi-trailers 3
  • Articulated lorries 1
  • Articulated lorries 2
  • Lorries 1
  • Lorries 2
  • Lorries 3
  • Special vehicles
  • Mechanical shovels
  • Dumpers
  • Lorry mounted cranes
  • Tanks
  • Trains

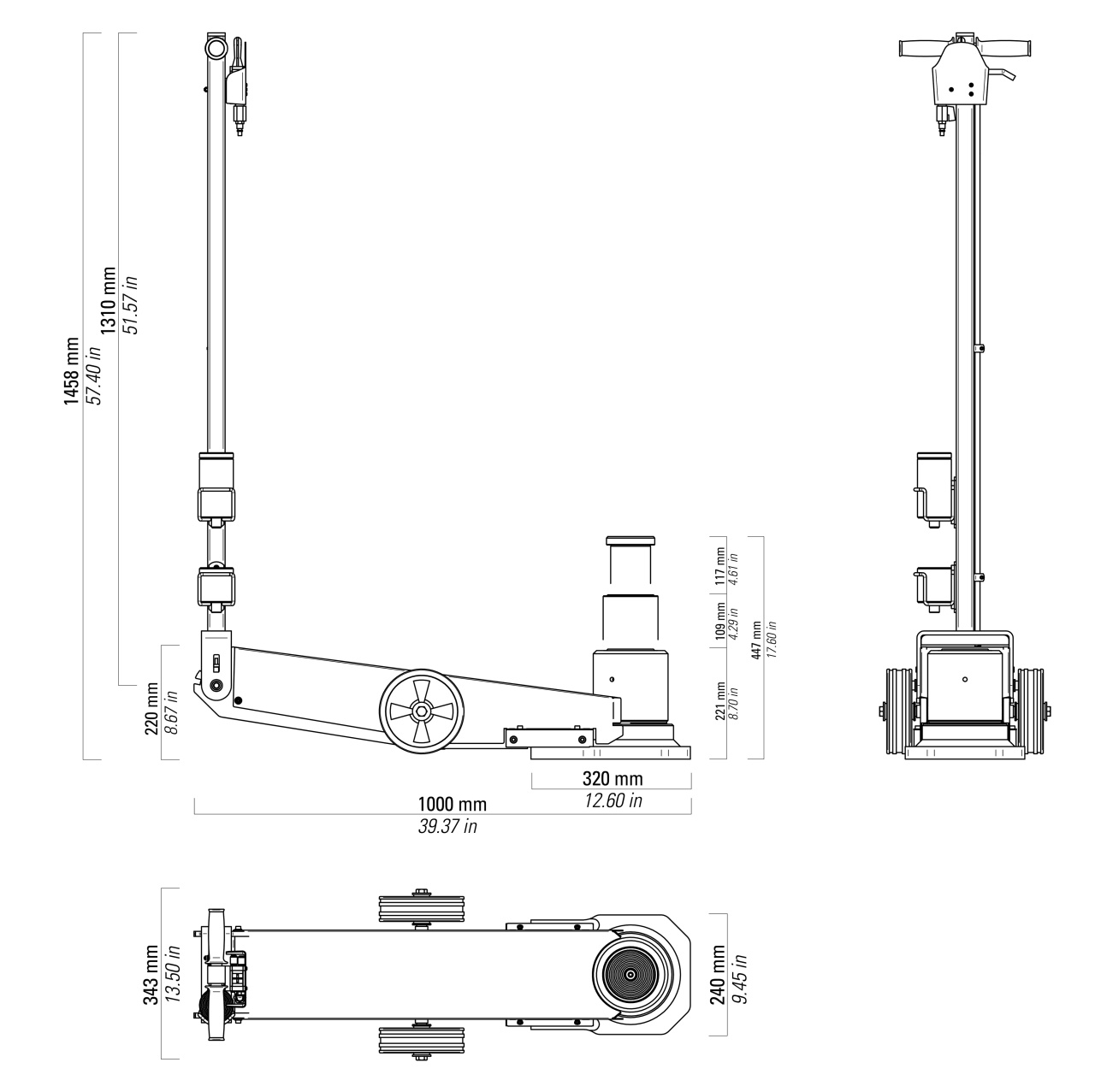

Size and dimensions

Air hydraulic jack - YAK 222/N print
