YAK 318/N Air hydraulic jack

YAK 318/N Air hydraulic jack

Air hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements.

Ideal for workshops, tyre repairers and bodywork shops.

Technical data

Capacity:
60/30/18 t
66.1/33.1/19.8 ton
Net weight:
69 Kg
152 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
600 nl/min
Max stroke:
238 mm
9.4 in
Min. height:
180 mm
7.1 in
Number of pistons:
3
Pistons stroke:
75 - 72 - 91 mm
3 - 2.8 - 3.6 in

Jack applications:

  • Road Tractors
  • Semi-trailers 1
  • Semi-trailers 2
  • Semi-trailers 3
  • Articulated lorries 1
  • Articulated lorries 2
  • Lorries 1
  • Lorries 2
  • Lorries 3
  • Special vehicles
  • Mechanical shovels
  • Dumpers
  • Lorry mounted cranes
  • Tanks
  • Trains

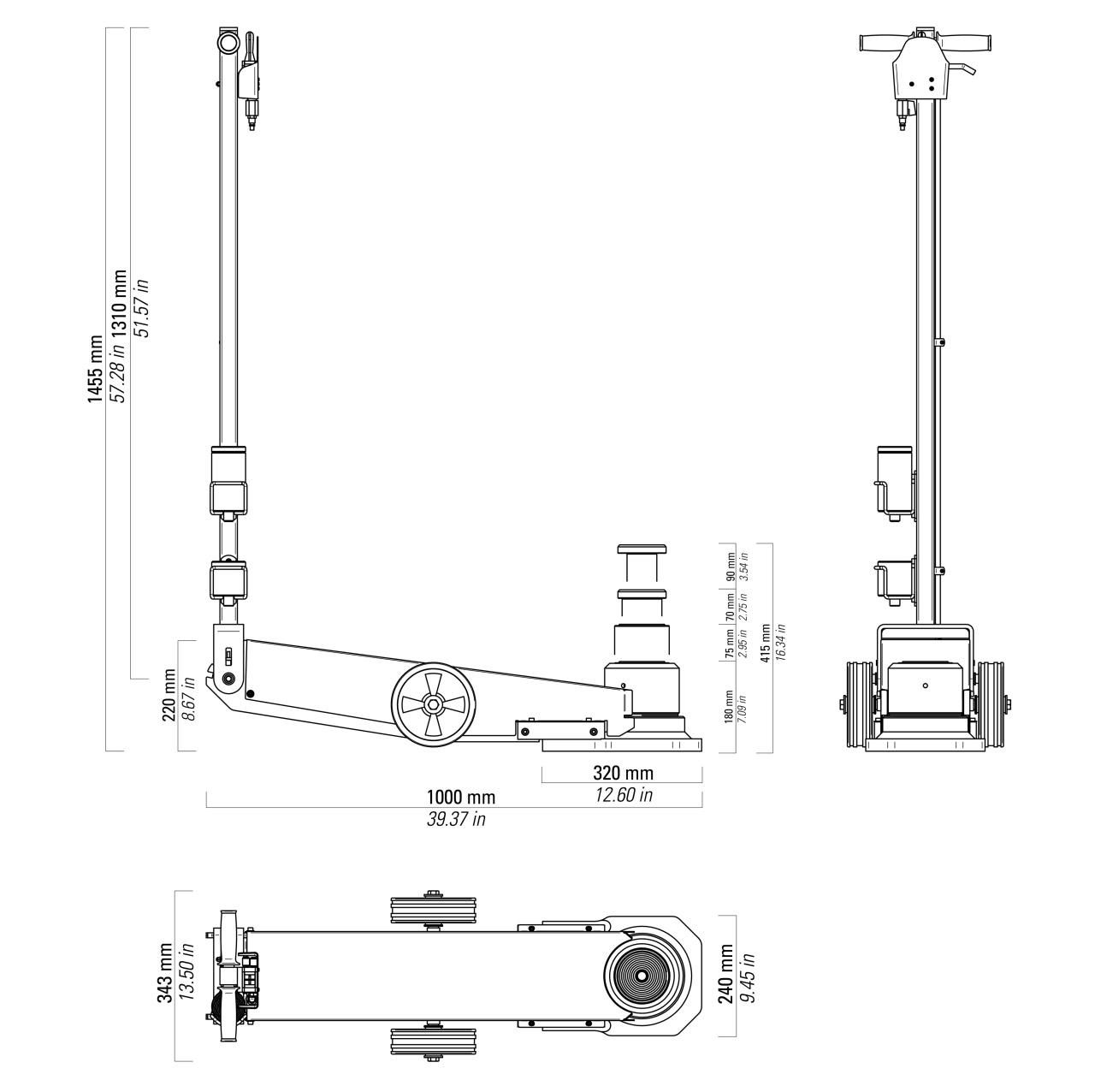

Size and dimensions

Air hydraulic jack - YAK 318/N print
