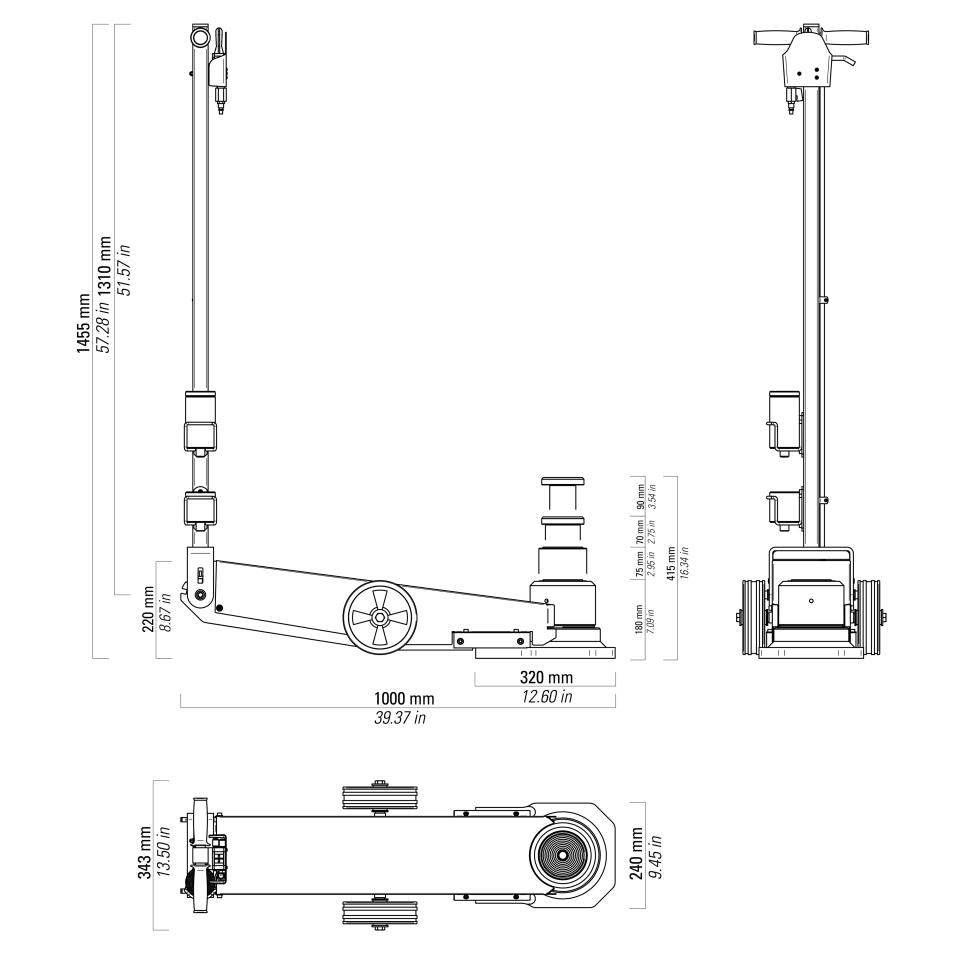

YAK 318/N - Air-hydraulic jack

Air-hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements.

Ideal for workshops, tyre repairers and bodywork shops.

Capacity:	60/30/18 t 66.1/33.1/19.8 ton
Net weight:	85 kg 187 lb
Working air pressure:	8-10 bar 116-145 psi
Air consumption:	600 Nl/min
Stroke:	235 mm 9.3 in
Min. height:	180 mm 7.1 in
Number of pistons:	3
Pistons stroke:	75 - 70 - 90 mm 3 - 2.8 - 3.5 in
