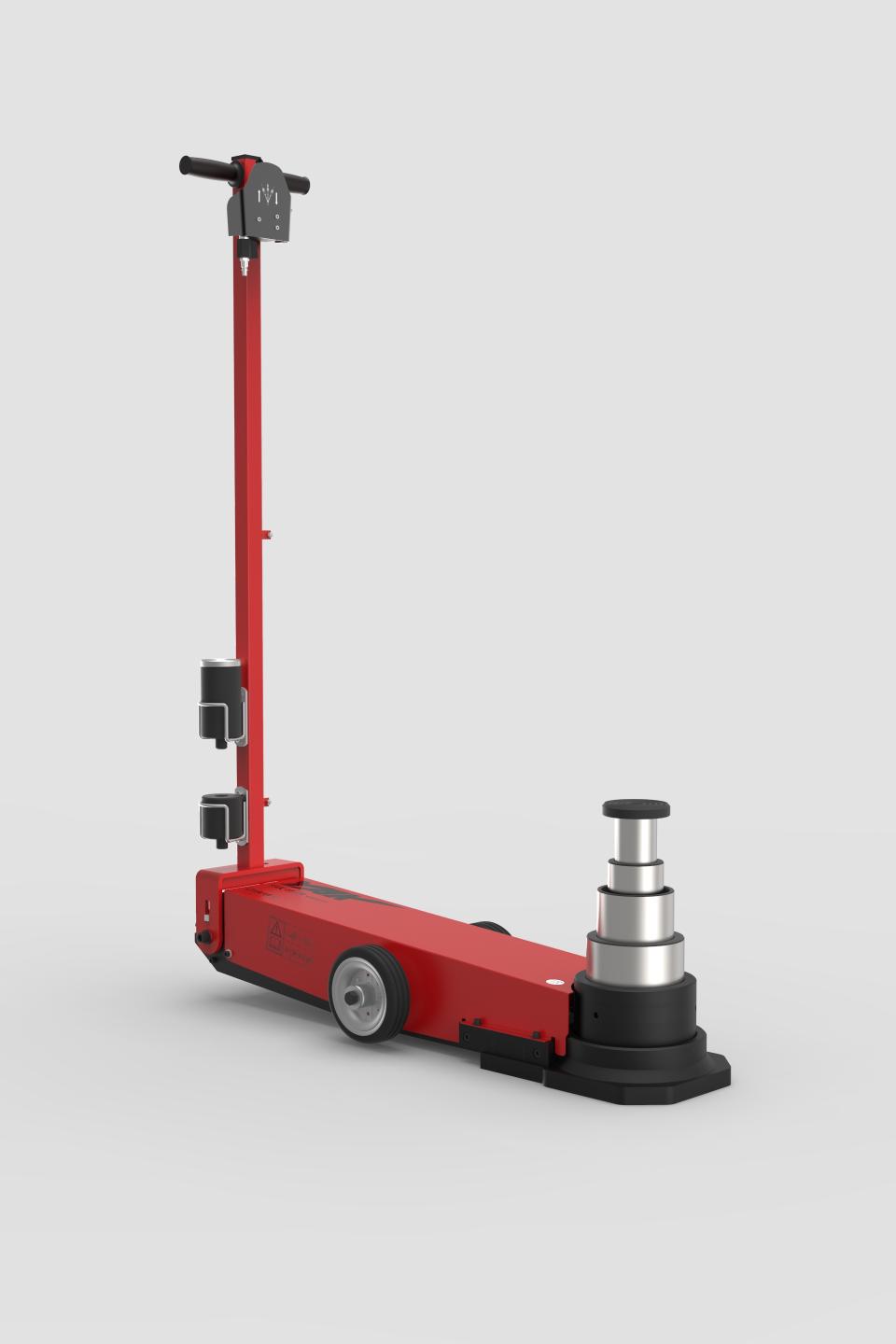

YAK 415/R Air hydraulic jack

YAK 415/R Air hydraulic jack

Air hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements.

Ideal for workshops, tyre repairers and bodywork shops.

Technical data

Capacity:
70/43/23/13 t
77.2/47.4/25.4/14.3 ton
Net weight:
74 Kg
163 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
600 nl/min
Max stroke:
250 mm
9.8 in
Min. height:
150 mm
5.9 in
Number of pistons:
4
Pistons stroke:
60 - 68 - 56 - 66 mm
2.4 - 2.7 - 2.2 - 2.6 in

Jack applications:

  • Road Tractors
  • Semi-trailers 1
  • Semi-trailers 2
  • Semi-trailers 3
  • Articulated lorries 1
  • Articulated lorries 2
  • Lorries 1
  • Lorries 2
  • Lorries 3
  • Special vehicles
  • Mechanical shovels
  • Dumpers
  • Lorry mounted cranes
  • Tanks
  • Trains

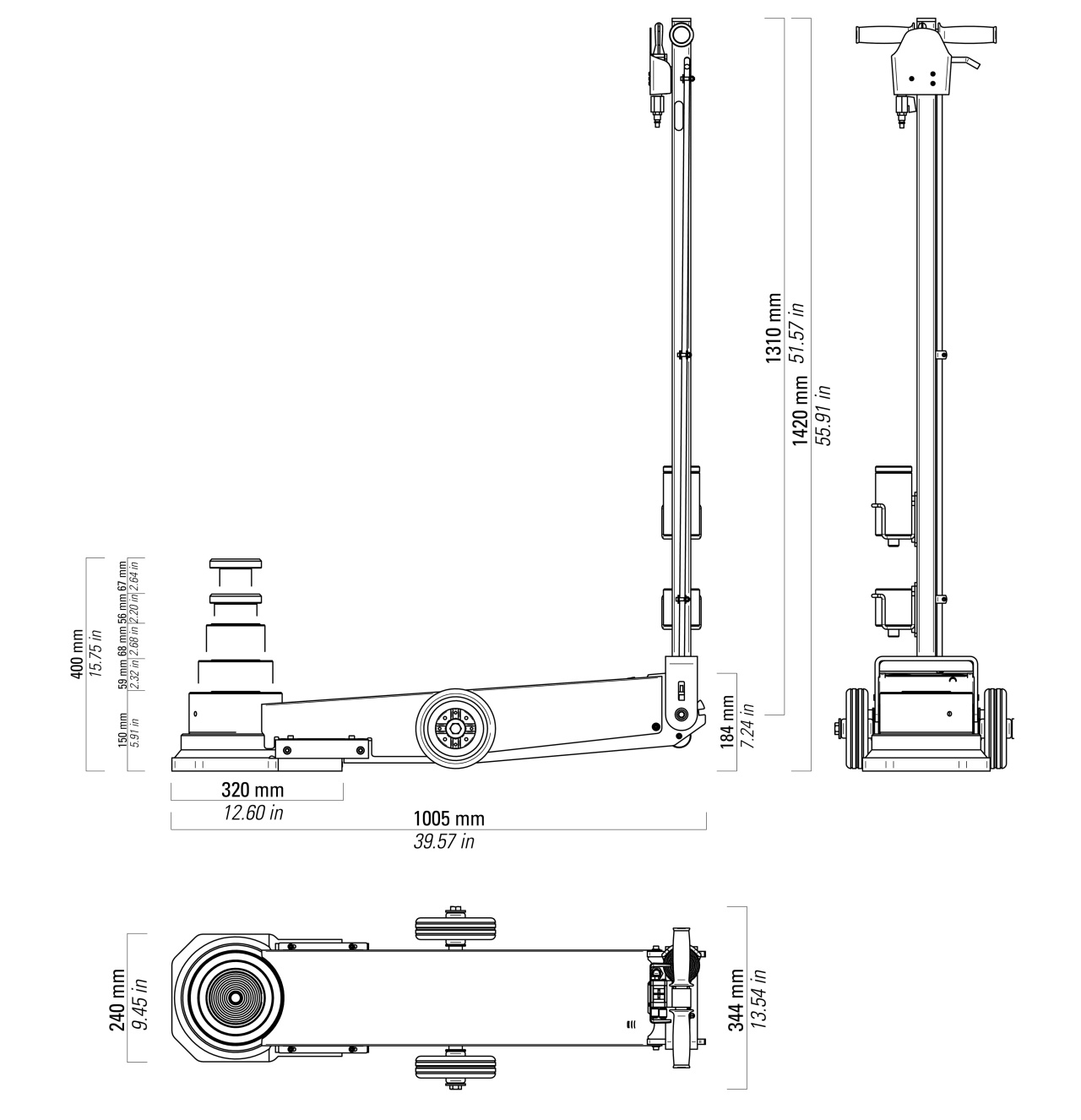

Size and dimensions

Air hydraulic jack - YAK 415/R print
