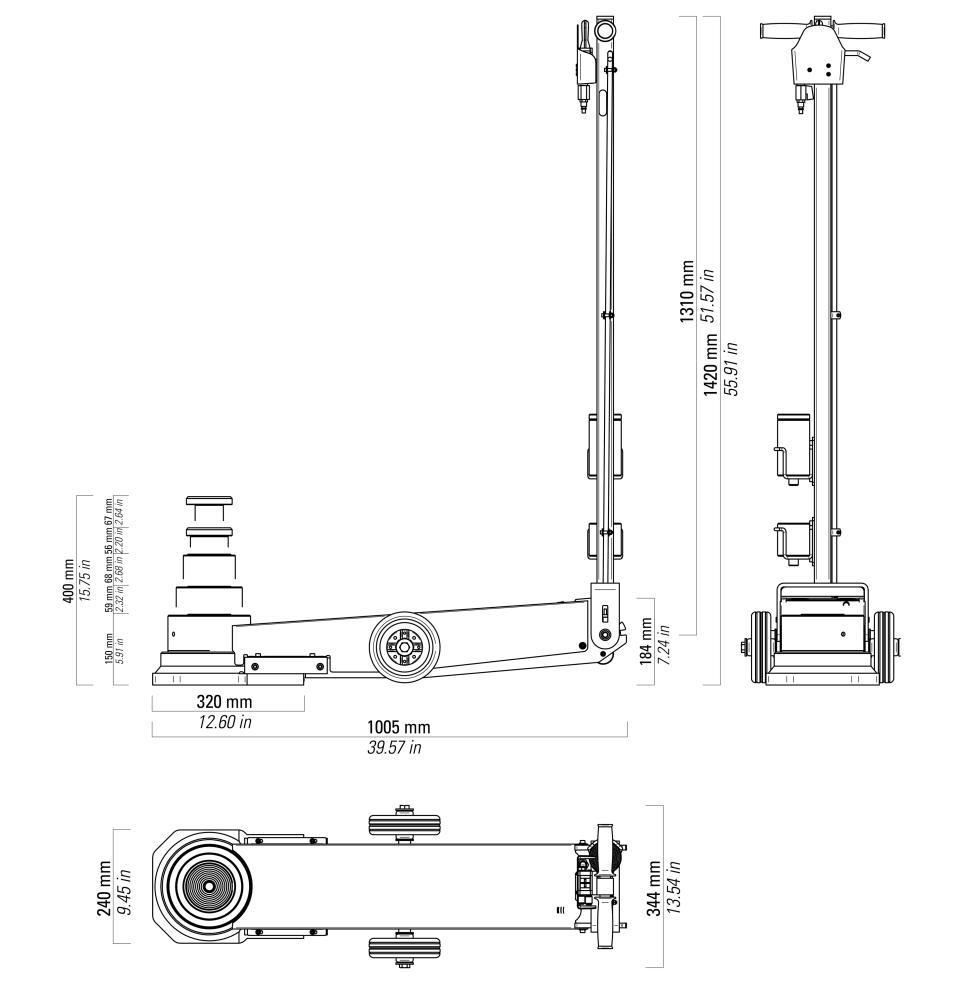

YAK 415/R - Air-hydraulic jack

Air-hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements.

Ideal for workshops, tyre repairers and bodywork shops.

Capacity:	70/43/23/13 t 77.2/47.4/25.4/14.3 ton
Net weight:	75 kg 165 lb
Working air pressure:	8-10 bar 116-145 psi
Air consumption:	600 Nl/min
Stroke:	250 mm 9.8 in
Min. height:	150 mm 5.9 in
Number of pistons:	4
Pistons stroke:	59 - 68 - 56 - 67 mm 2.3 - 2.7 - 2.2 - 2.6 in
