YAK 418/N - Air-hydraulic jack

Air-hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements.

Ideal for workshops, tyre repairers and bodywork shops.

Capacity:	80/50/25/15 t 88.2/55.1/27.6/16.5 ton
Net weight:	77 kg 170 lb
Working air pressure:	8-10 bar 116-145 psi
Air consumption:	600 Nl/min

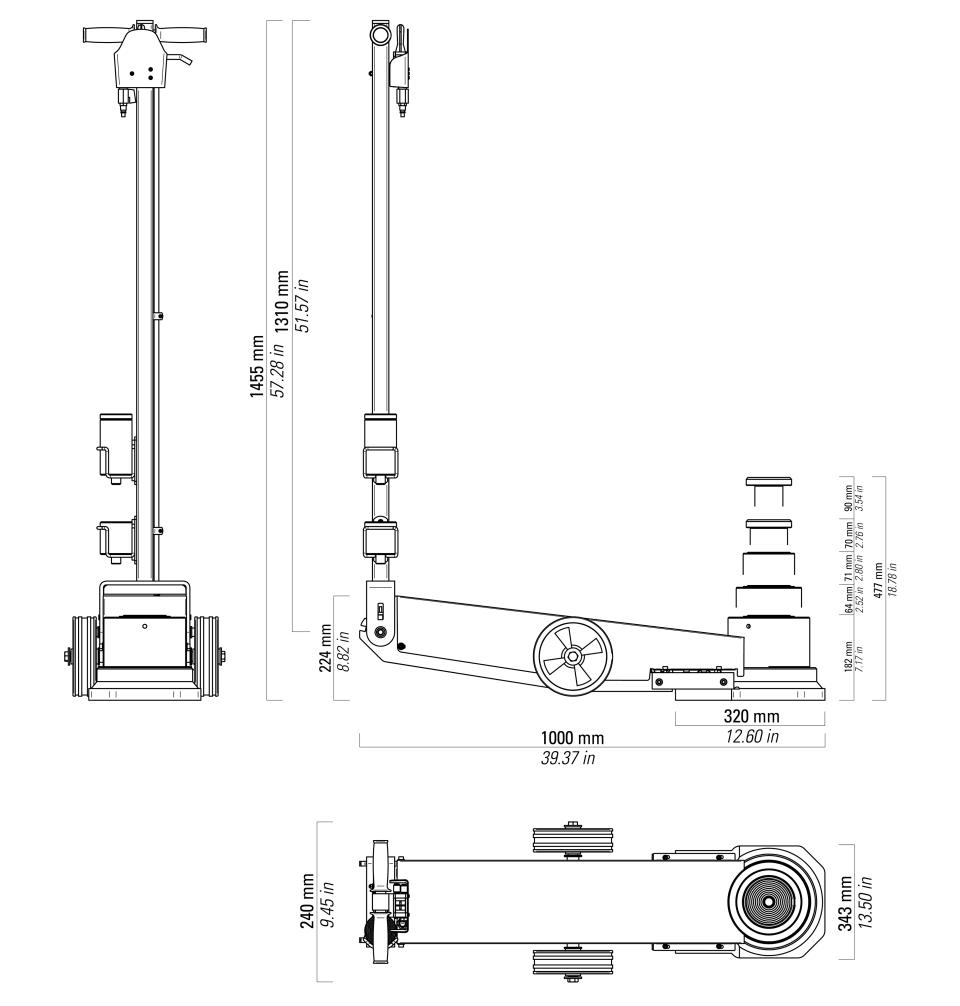

Stroke:	295 mm 11.6 in
Min. height:	182 mm 7.2 in
Number of pistons:	4
Pistons stroke:	64 - 71 - 70 - 90 mm 2.5 - 2.8 - 2.8 - 3.5 in
