YAK 1615H - Suspended pit jack

Our new range of suspended pit jacks is designed for lifting heavy vehicles and is also the ideal solution for the service and maintenance of gearboxes and differentials.

All models are equipped with a new magnetic remote control, which allows the operator to use them in total safety and freedom of movement. They are also equipped with a double descent valve that guarantees a perfect seal and a controlled speed during descent under load.

The customer can choose between two stroke options (600mm or 800mm); two possible capacities (15 or 20 tons); type of beam and wheels.

Capacity:	15 t 16.5 ton
Net weight:	333 Kg 734 lb
Working air pressure:	8-10 bar 116-145 psi
Air consumption:	600 nl/min

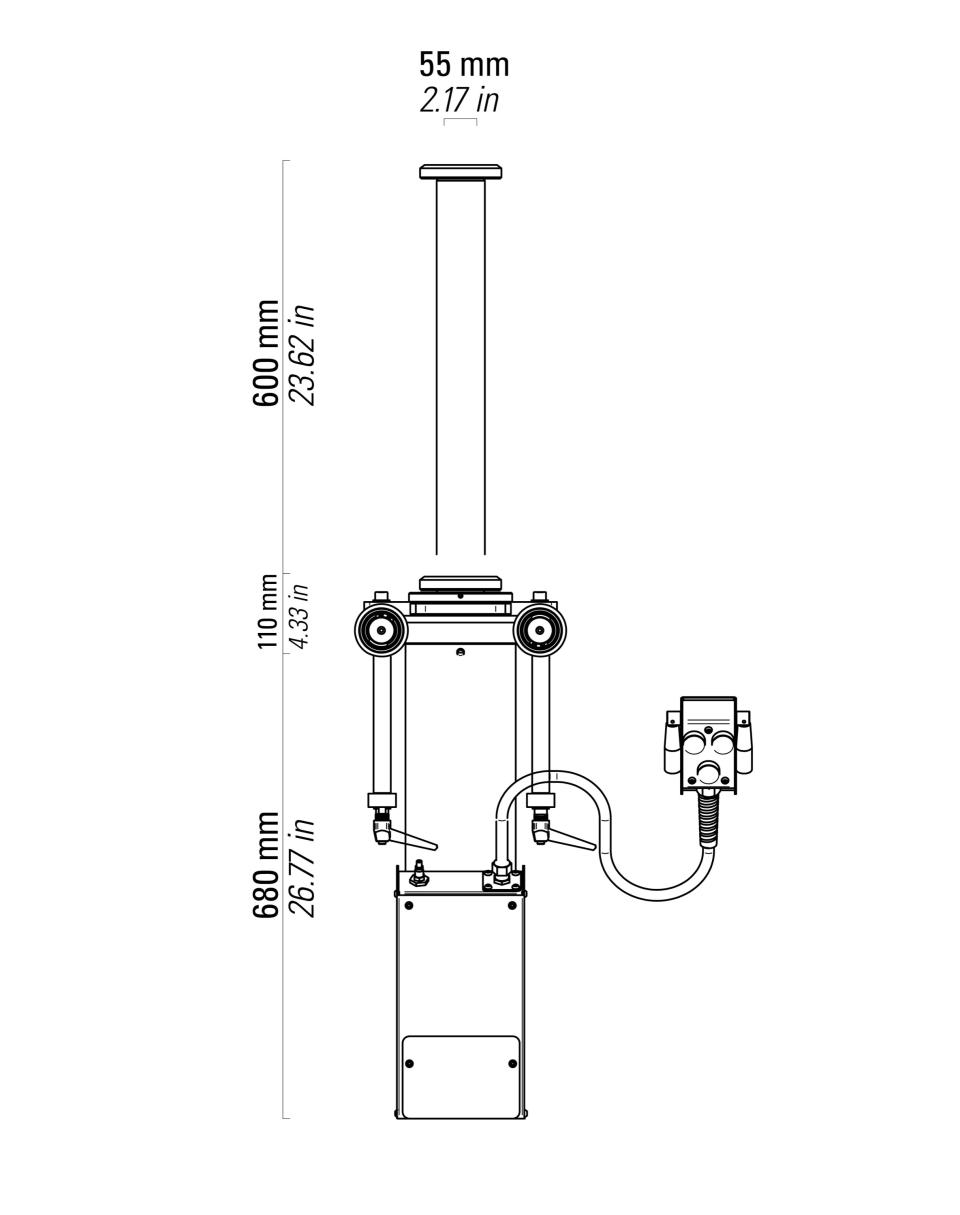

Stroke:	600 mm 23.6 in
Min. height:	790 mm 31.1 in
Number of pistons:	1
Pistons stroke:	600 mm 23.6 in
