YAK 1815H

Our new range of suspended pit jacks is designed for lifting heavy vehicles and is also the ideal solution for the service and maintenance of gearboxes and differentials.

All models are equipped with a new magnetic remote control, which allows the operator to use them in total safety and freedom of movement. They are also equipped with a double descent valve that guarantees a perfect seal and a controlled speed during descent under load.

The customer can choose between two stroke options (600mm or 800mm); two possible capacities (15 or 20 tons); type of beam and wheels.

YAK 1815H main features:
  • Practical & easy to handle
  • Made with superior quality materials
  • Quality tested and ISO 9001 certified
Video of jack in use
Jack applications:
  • Semi-trailers 1
  • Semi-trailers 3
  • Lorries 2
  • Lorries 3
  • Articulated lorries 1
  • Special vehicles
  • Buses 2
  • Buses 3
  • Articulated lorries 2
  • Buses 1
  • Lorries 1
  • Lorry mounted cranes
  • Semi-trailers 2
  • Road Tractors
Capacity: 15 t
16.5 ton
Net weight: 355 Kg
783 lb
Working air pressure: 8-10 bar
116-145 psi
Air consumption: 600 nl/min

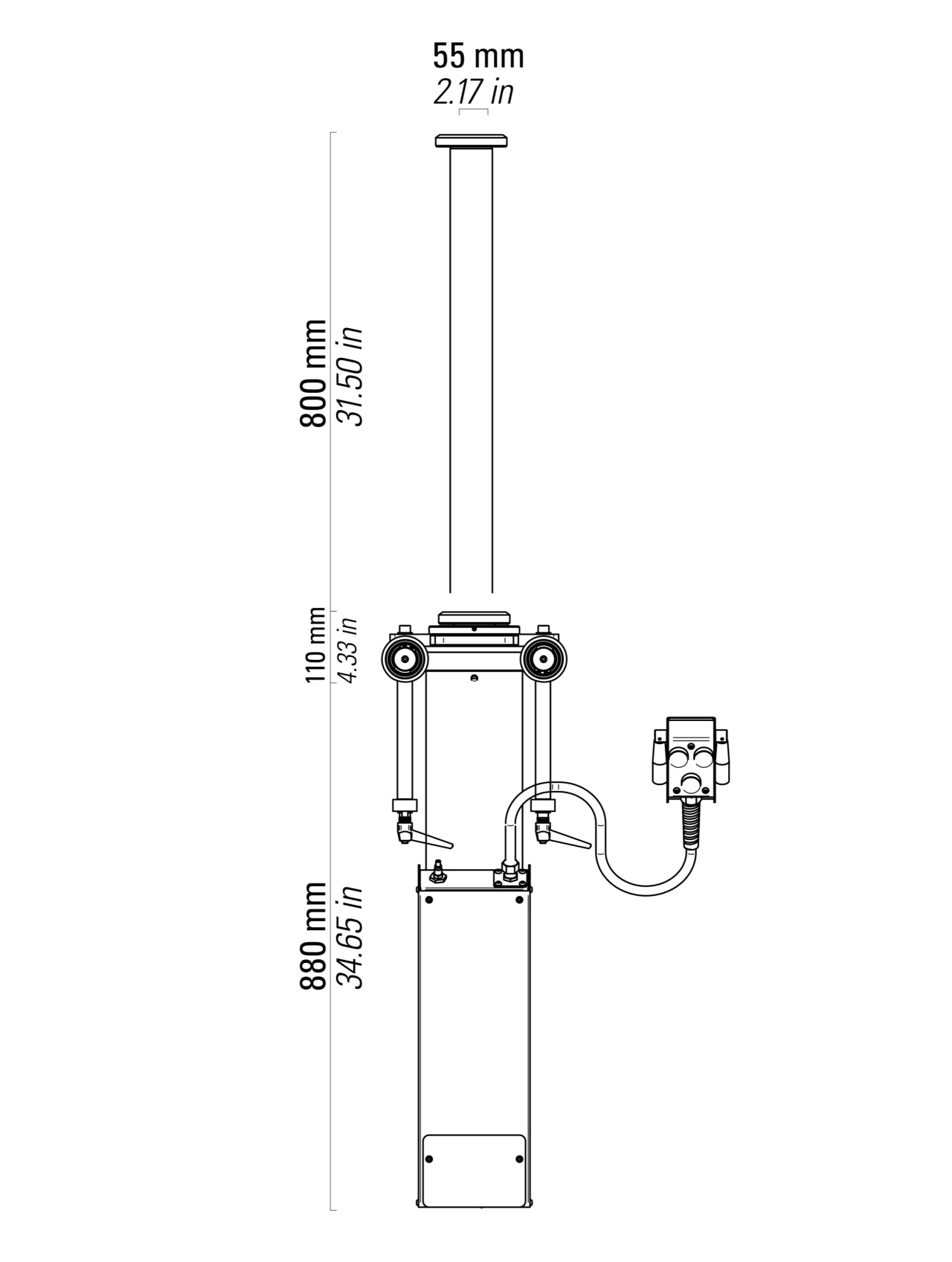

Stroke: 800 mm
31.5 in
Min. height: 790 mm
31.1 in
Number of pistons: 1
Pistons stroke: 800 mm
31.5 in
YAK 1815H
