YAK 1815H - Suspended pit jack

Our new range of suspended pit jacks is designed for lifting heavy vehicles and is also the ideal solution for the service and maintenance of gearboxes and differentials.

All models are equipped with a new magnetic remote control, which allows the operator to use them in total safety and freedom of movement. They are also equipped with a double descent valve that guarantees a perfect seal and a controlled speed during descent under load.

The customer can choose between two stroke options (600mm or 800mm); two possible capacities (15 or 20 tons); type of beam and wheels.

Capacity: 15 t
16.5 ton
Net weight: 355 Kg
783 lb
Working air pressure: 8-10 bar
116-145 psi
Air consumption: 600 nl/min
Stroke: 800 mm
31.5 in
Min. height: 790 mm
31.1 in
Number of pistons: 1
Pistons stroke: 800 mm
31.5 in

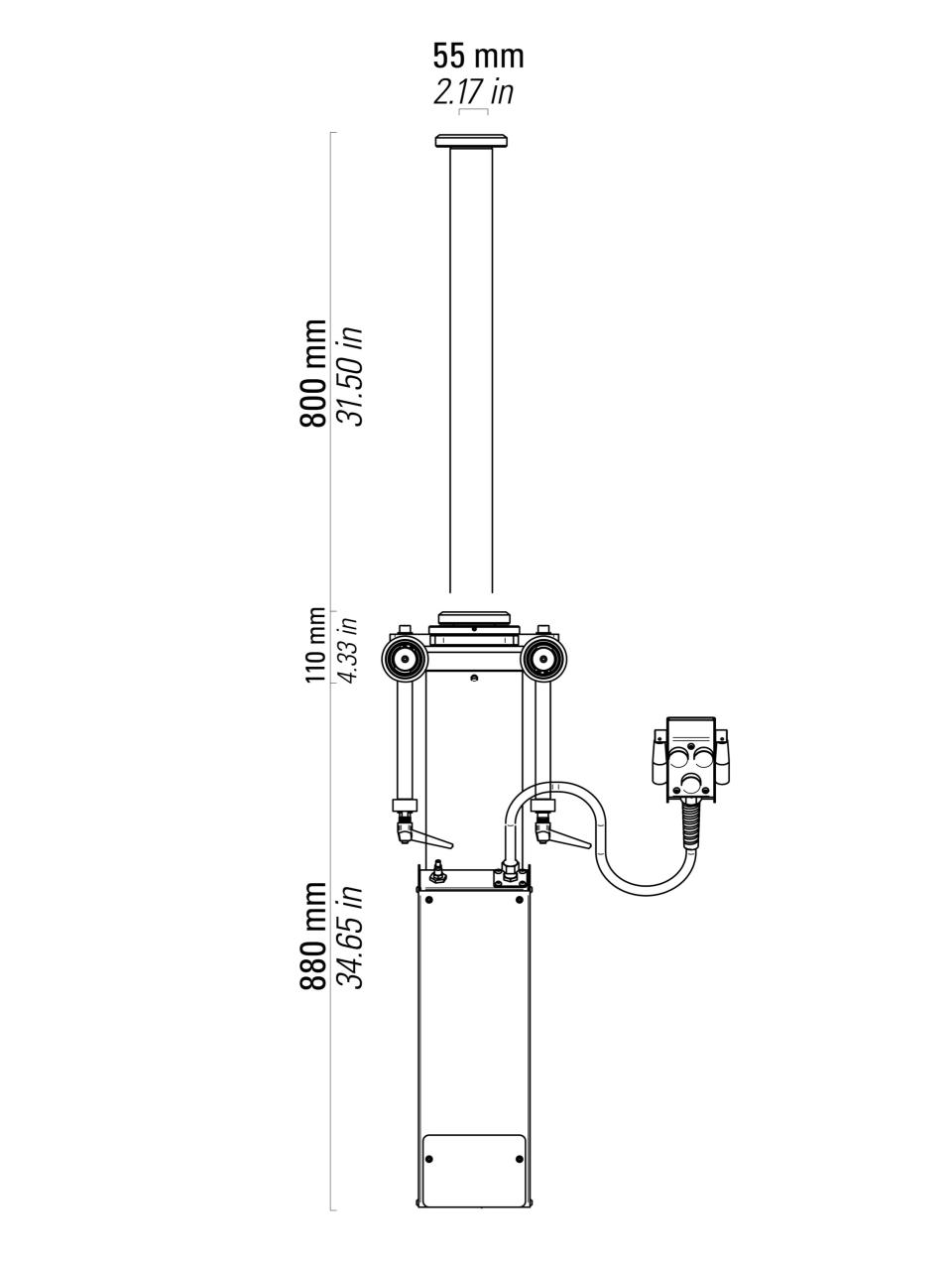

YAK 1815H
Compatible accessories:
Adapter A01754
Adapter A01758
Adapter A01760
Cradle for gearboxes A00206
Cradle for gearboxes A00207
Jacking beam A00221
Plate A04276
Safety block A05952
Support Bridge A09054
