YAK 2810 Wheeled Pit jack

YAK 2810 Wheeled Pit jack

Wheeled air operated hydraulic pit jack, fully automatic, suitable for lifting heavy vehicles or for the assistance and maintenance of speed and differential gears.

Our range includes 8 different models, conceived and designed to meet all requirements. Besides two different control units (EASY and TOP), 2 different wheel systems can be choosen: the first on pneumatic cylinders with independent air tank, the second with wheels mounted on shock absorbers.

The range is ideal for all workshops with communicating pits and for working under lifts. Out of the comprehensive range of accessories you can ask for the remote control, indispensable to work safely in all situations.

Technical data

Capacity:
10/20 t
11/22 ton
Net weight:
250 Kg
551 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
600 nl/min
Max stroke:
1185 mm
46.7 in
Min. height:
800 mm
31.5 in
Number of pistons:
2
Pistons stroke:
585 - 600 mm
23 - 23.6 in

Jack applications:

  • Semi-trailers 1
  • Semi-trailers 3
  • Lorries 2
  • Lorries 3
  • Articulated lorries 1
  • Special vehicles
  • Buses 2
  • Buses 3
  • Articulated lorries 2
  • Buses 1
  • Lorries 1
  • Lorry mounted cranes
  • Semi-trailers 2
  • Road Tractors

Configuration options:

Power unit type
Power unit type
TIPO COMANDI

EASY version
1_ Quick approach
2_ Lifting
3_ Quick descent

tipo comandi

TOP version
1_ Quick approach
2_ Lifting
3_ Quick descent
4_ Motor speed (lifting) adjustment
5_ Motor speed (lifting) selector
6_ Fine jack drop adjustment

Wheel Type
Wheel Type
TIPO COMANDI

Spring wheels
Wheels with springs - 600 Kg capacity

tipo comandi

Pneumatic wheels
Pneumatic wheels - 1200 Kg capacity


Configurator

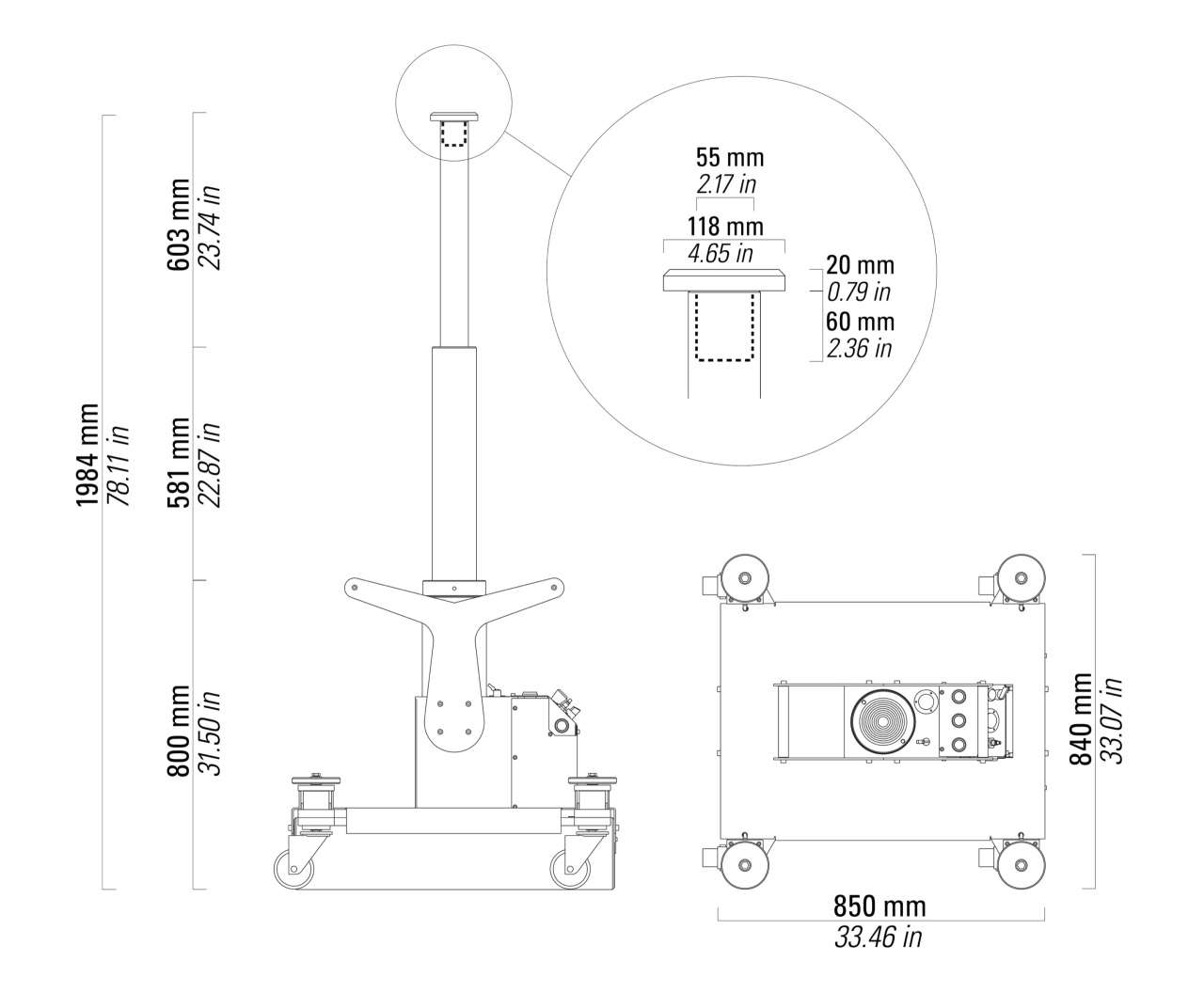

Size and dimensions

Wheeled Pit jack - YAK 2810 print
