YAK 2815 - Wheeled Pit jack

Wheeled air-hydraulic pit jack, fully automatic, suitable for lifting heavy vehicles or for the assistance and maintenance of speed and differential gears.

Our range includes 8 different models, conceived and designed to meet all requirements. Besides two different control units (EASY and TOP), 2 different wheel systems can be choosen: the first on pneumatic cylinders with independent air tank, the second with wheels mounted on shock absorbers.

The range is ideal for all workshops with communicating pits and for working under lifts. Out of the comprehensive range of accessories you can ask for the remote control, indispensable to work safely in all situations.

Capacity: 30/15 t
33.1/16.5 ton
Net weight: 250 kg
551 lb
Working air pressure: 8-10 bar
116-145 psi
Air consumption: 600 Nl/min

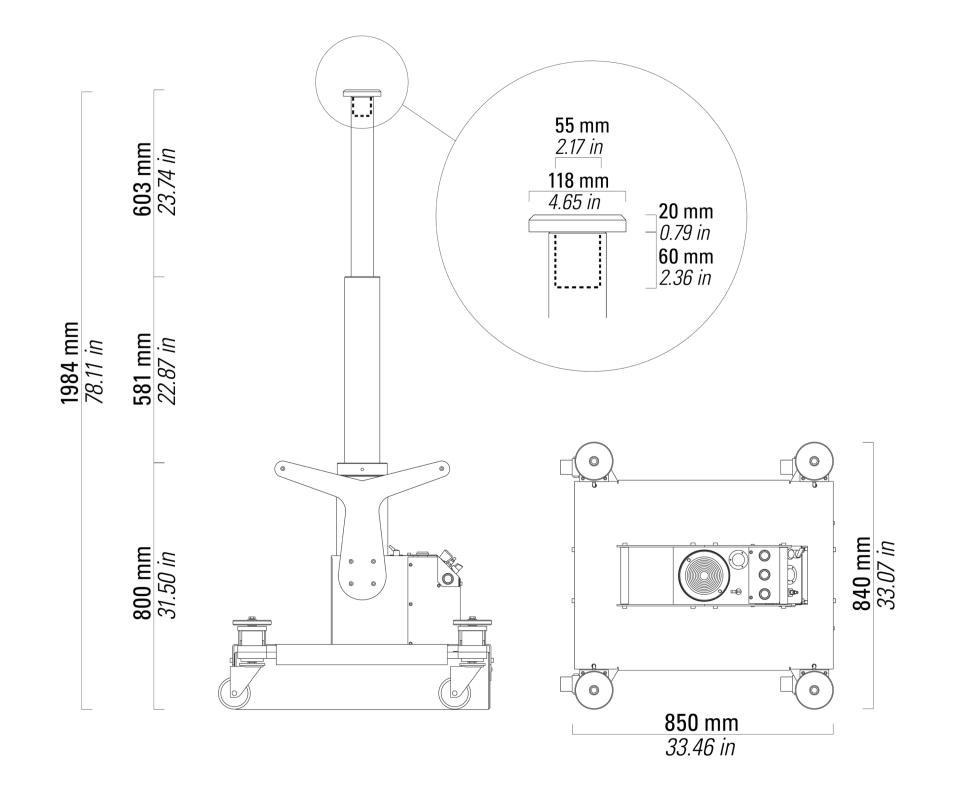

Stroke: 1184 mm
46.6 in
Min. height: 800 mm
31.5 in
Number of pistons: 2
Pistons stroke: 581 - 603 mm
22.9 - 23.7 in
YAK 2815
Compatible accessories:
Remote control A00451
Plate A04270
Plate A04276
Adapter A01754
Adapter A01758
Adapter A01760
Cradle for gearboxes A00206
Cradle for gearboxes A00207
Jacking beam A00221
Adapter A01762
Extension A09013
Extension A09015
Support Bridge A09520
