YAK 132 Pneumatic jack

YAK 132 Pneumatic jack

Pneumatically controlled jacks consisting of a highly resistant diaphragm and internal telescopic guide. These jacks are fitted with a limit stop device as well as a safety valve making them absolutely reliable in the case of excessive loads.

Silent, simple and lightweight, they are ideal for tyre repairers and bodywork shops in view of the fact they can also be used on column lifts. Also available in the trolley version (C).

Technical data

2 t
2.2 ton
Net weight:
14 Kg
31 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
100 nl/min
Max stroke:
194 mm
7.6 in
Min. height:
132 mm
5.2 in
Number of pistons:
Pistons stroke:
97 - 97 mm
3.8 - 3.8 in

Jack applications:

  • Small Cars
  • Station Wagons
  • SUV
  • Pick-ups
  • Vans 1
  • Vans 2

Compatible accessories:

A02428A02428 A02429A02429

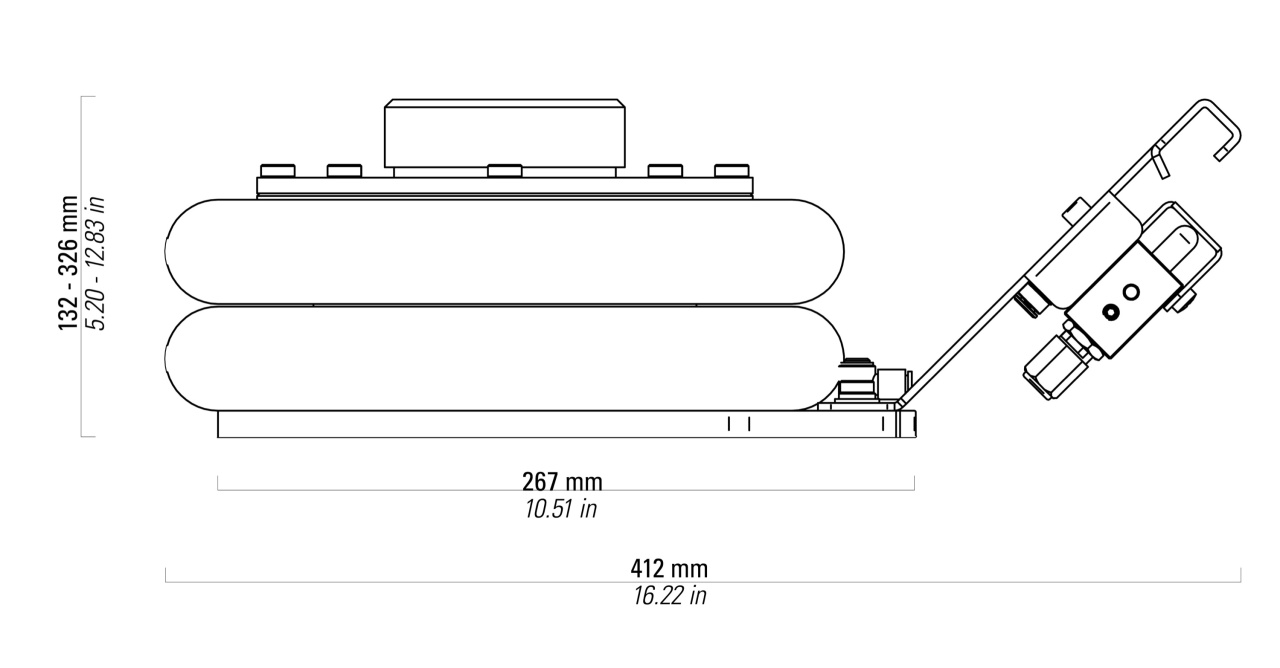

Size and dimensions

Pneumatic jack - YAK 132 print
