YAK 135 Air hydraulic jack

YAK 135 Air hydraulic jack

Air hydraulic jacks for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load.

YAK 135 is ideal for agricultural and public works vehicles. Fitted with roll-over protection plate and, on request, pneumatic wheels for working on particular difficult terrain.

Technical data

Capacity:
30 t
33.1 ton
Net weight:
57 Kg
126 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
400 nl/min
Max stroke:
220 mm
8.7 in
Min. height:
350 mm
13.8 in
Number of pistons:
1
Pistons stroke:
220 mm
8.7 in

Jack applications:

  • Mechanical shovels
  • Farm Tractors
  • Dumpers
  • Lorry mounted cranes
  • Tanks
  • Trains
  • Bulldozers
  • Semi-trailers 1
  • Semi-trailers 2
  • Semi-trailers 3

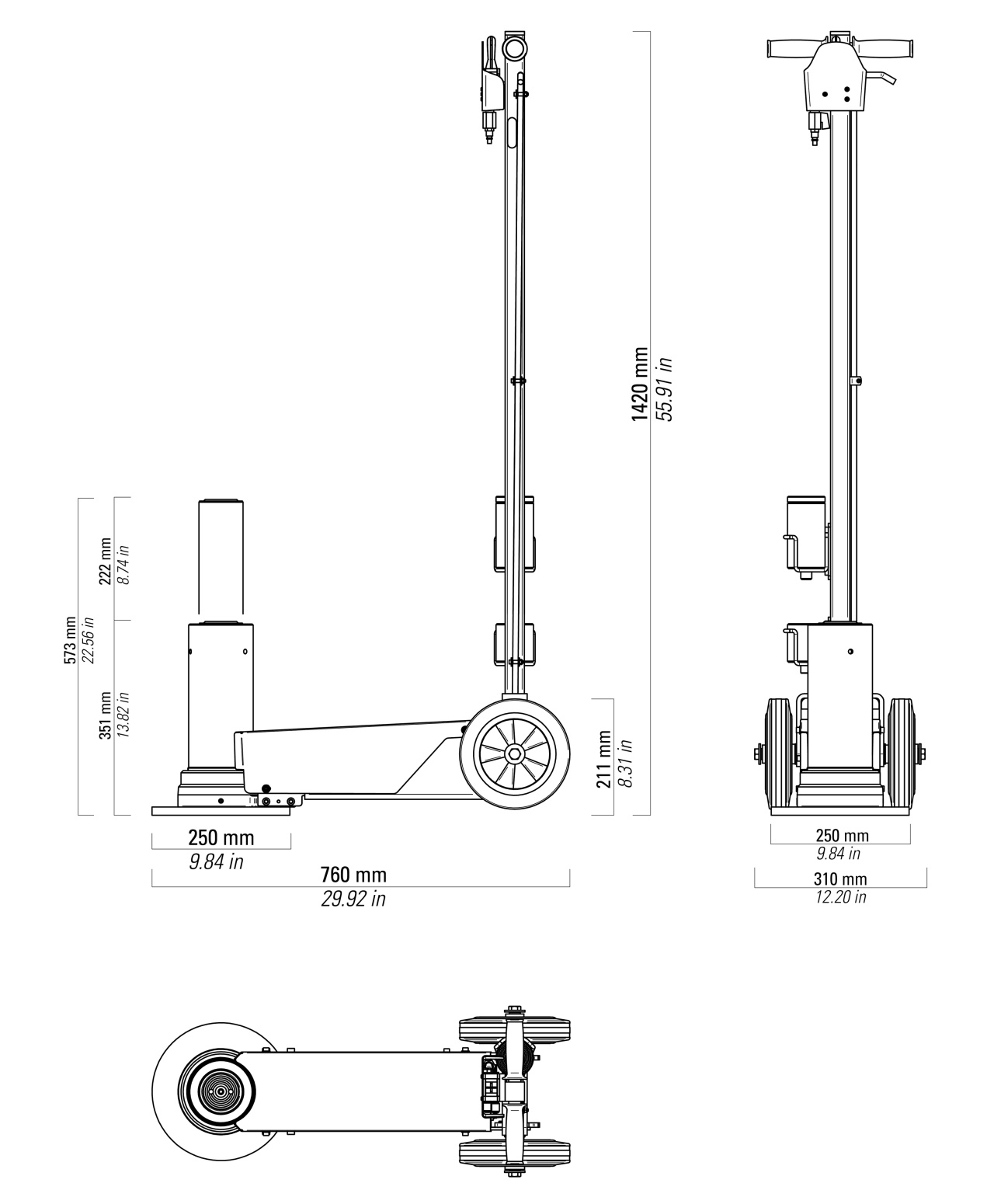

Size and dimensions

Air hydraulic jack - YAK 135 print
