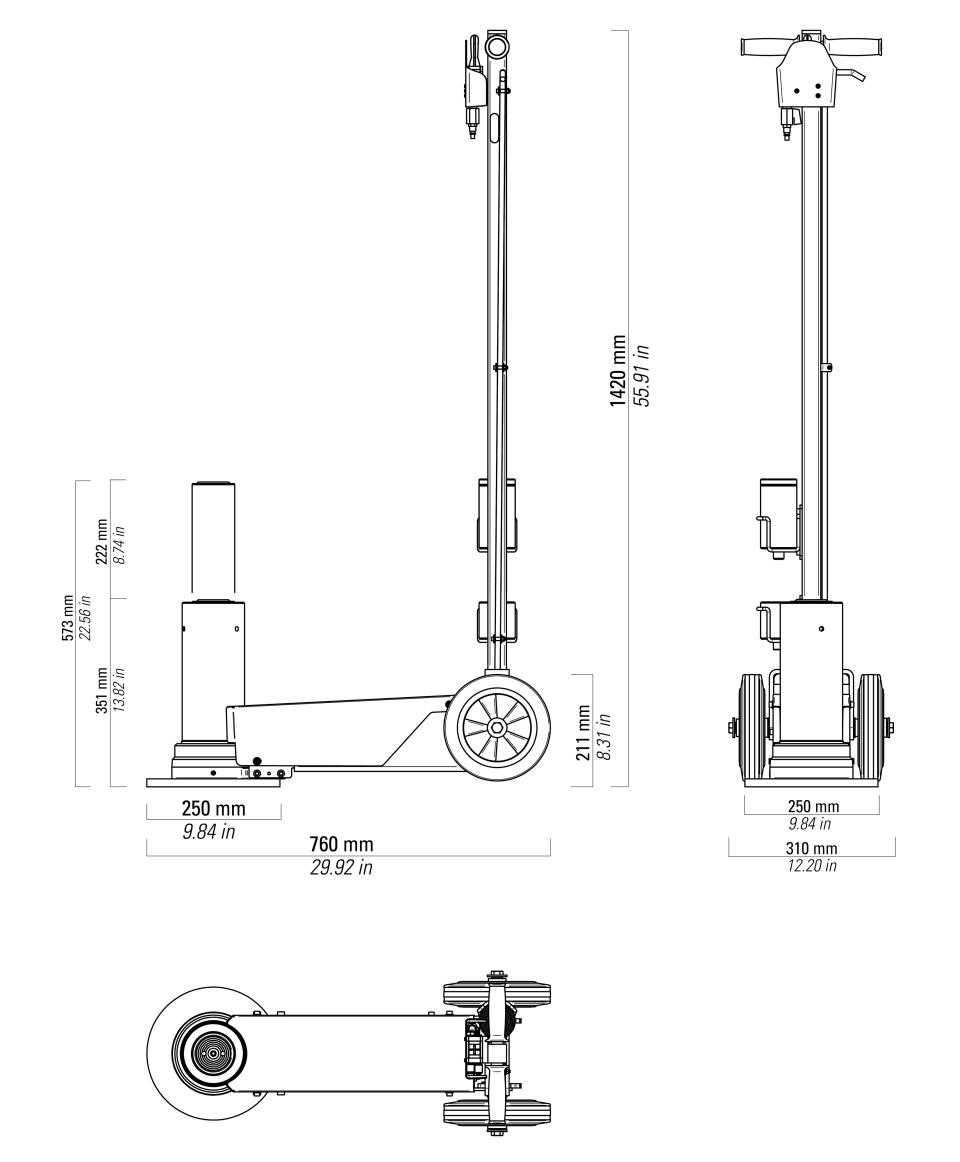

YAK 135 - Air-hydraulic jack

Air-hydraulic jacks for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load.

YAK 135 is ideal for agricultural and public works vehicles. Fitted with roll-over protection plate and, on request, pneumatic wheels for working on particular difficult terrain.

Capacity: 30 t
33.1 ton
Net weight: 57 kg
126 lb
Working air pressure: 8-10 bar
116-145 psi
Air consumption: 400 Nl/min
Stroke: 222 mm
8.7 in
Min. height: 351 mm
13.8 in
Number of pistons: 1
Pistons stroke: 222 mm
8.7 in
YAK 135
Compatible accessories:
Plate A00873
Plate A02361
Extension A02417
Extension A02419
Pair of pneumatic wheels A00496
Plate A07950
Plate A09405
Plate A02354
Extension A02406
Extension A02410
Plate A00875
