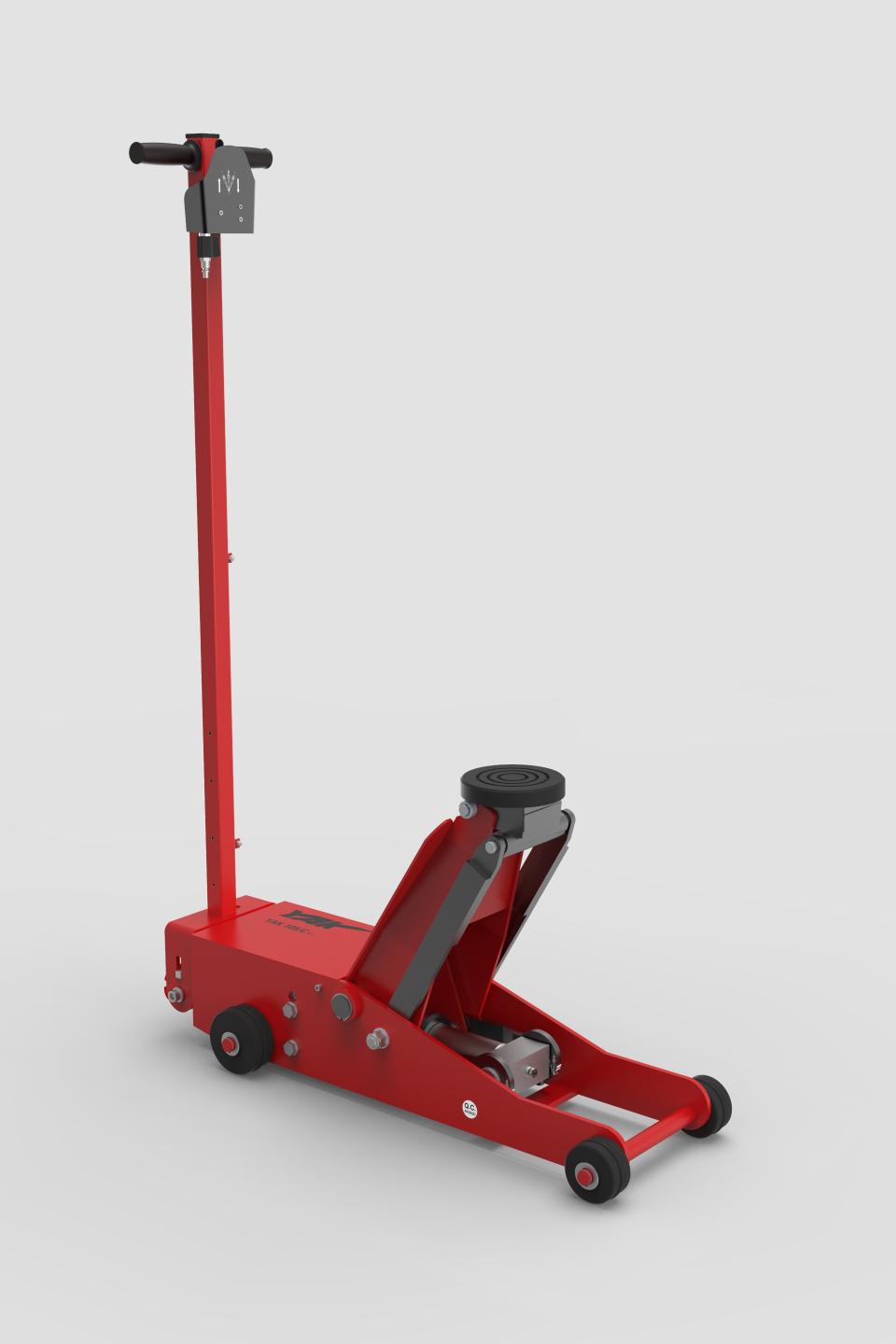

YAK 109/C Air-hydraulic trolley jack

YAK 109/C Air-hydraulic trolley jack

Air hydraulic trolley jack, practical and easy to handle.

The arm moves back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load.

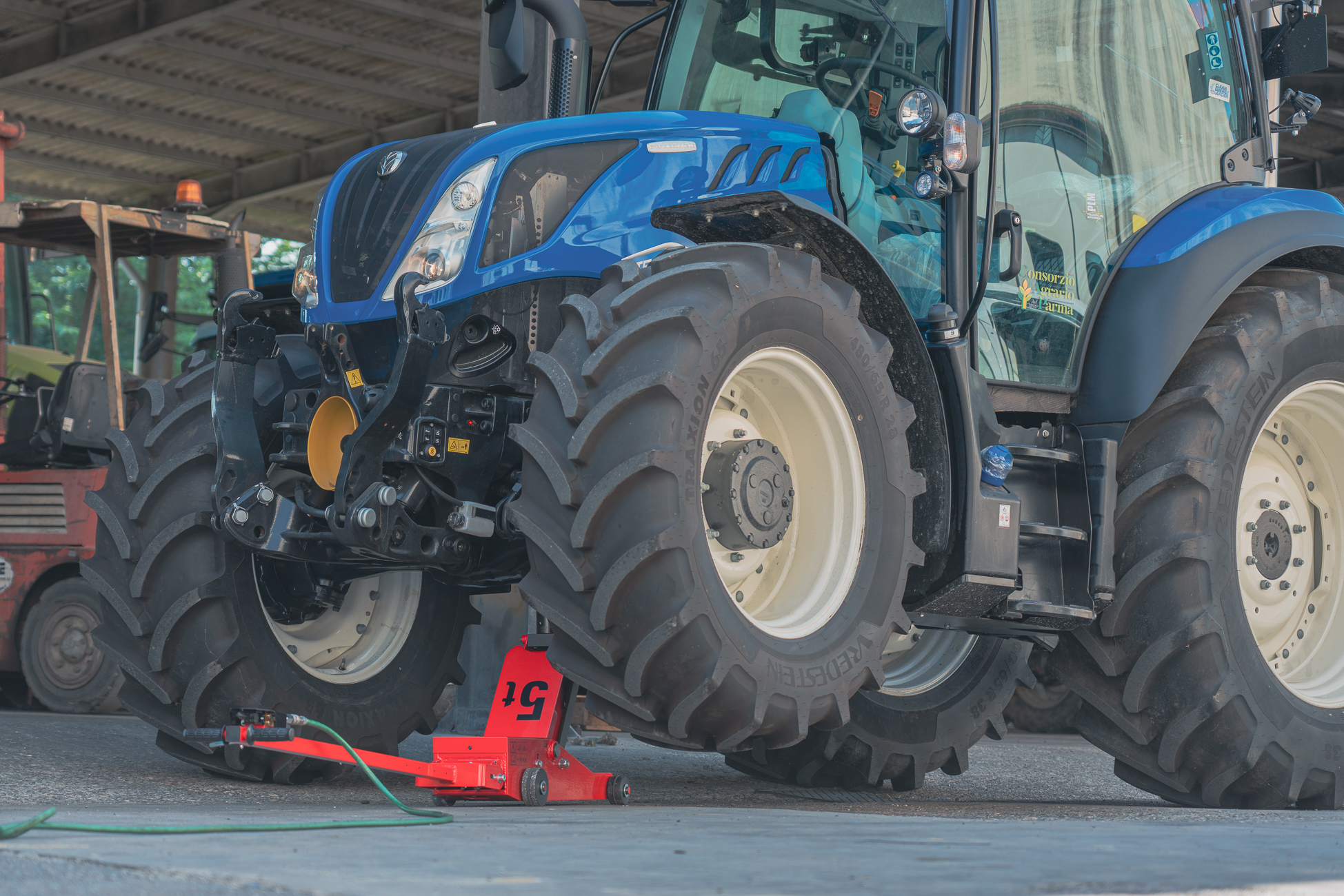

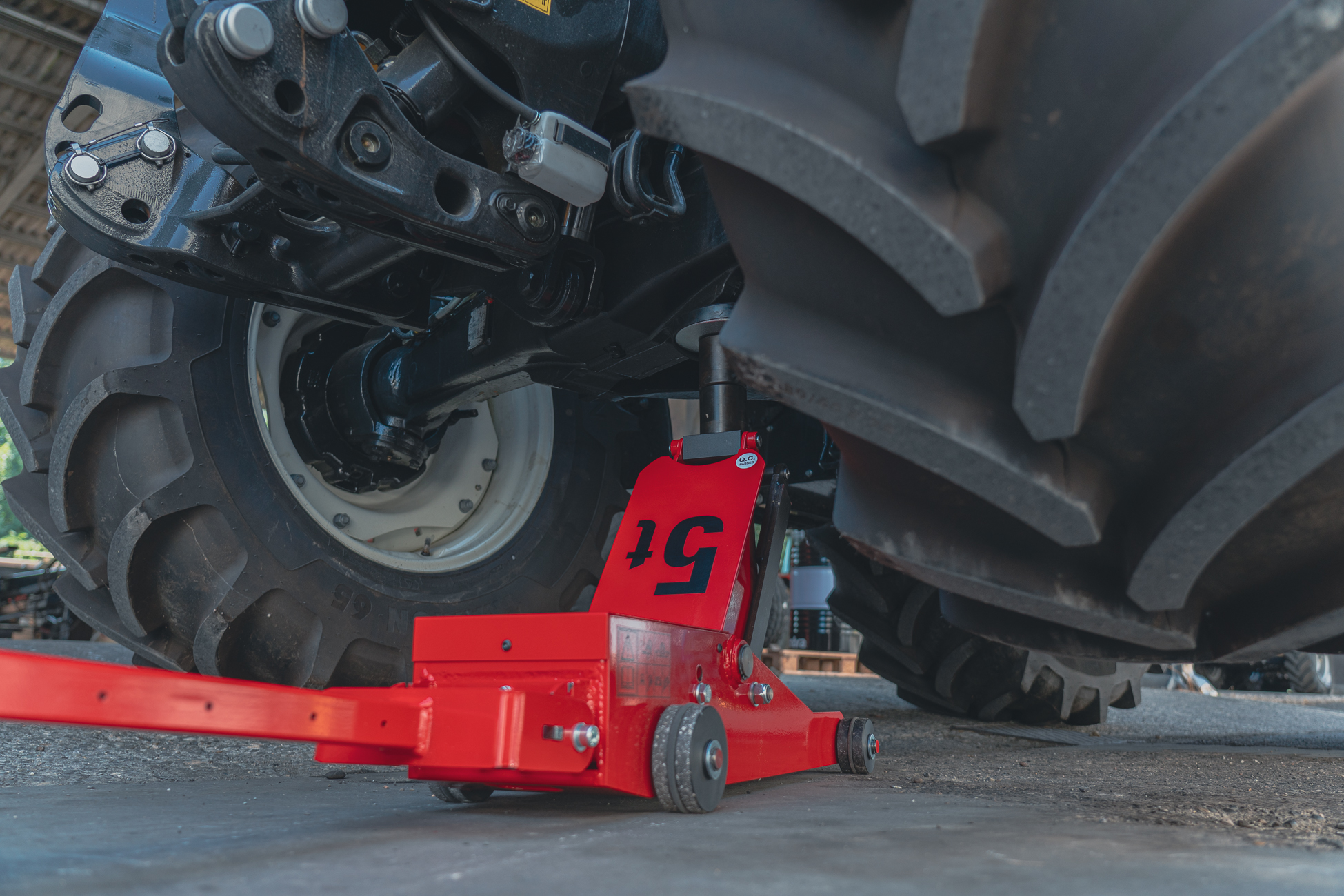

Thanks to its minimum height (90mm), maximum height (500mm) and capacity (5t.) this jack is flexible and particularly suitable for cars, campers, vans, medium sized lorries, trailers and all vehicles weighing up to 12 t.

Ideal for workshops, tyre repairers and bodywork shops.

Technical data

Capacity:
5 t
5.5 ton
Net weight:
75 Kg
165 lb
Working air pressure:
8-10 bar
116-145 psi
Air consumption:
400 nl/min
Max stroke:
410 mm
16.1 in
Min. height:
90 mm
3.5 in

Jack applications:

  • Small Cars
  • Station Wagons
  • SUV
  • Pick-ups
  • Vans 1
  • Vans 2
  • Vans 3
  • Semi-trailers 1
  • Lorries 1
  • Farm Tractors

Compatible accessories:

A02430A02430

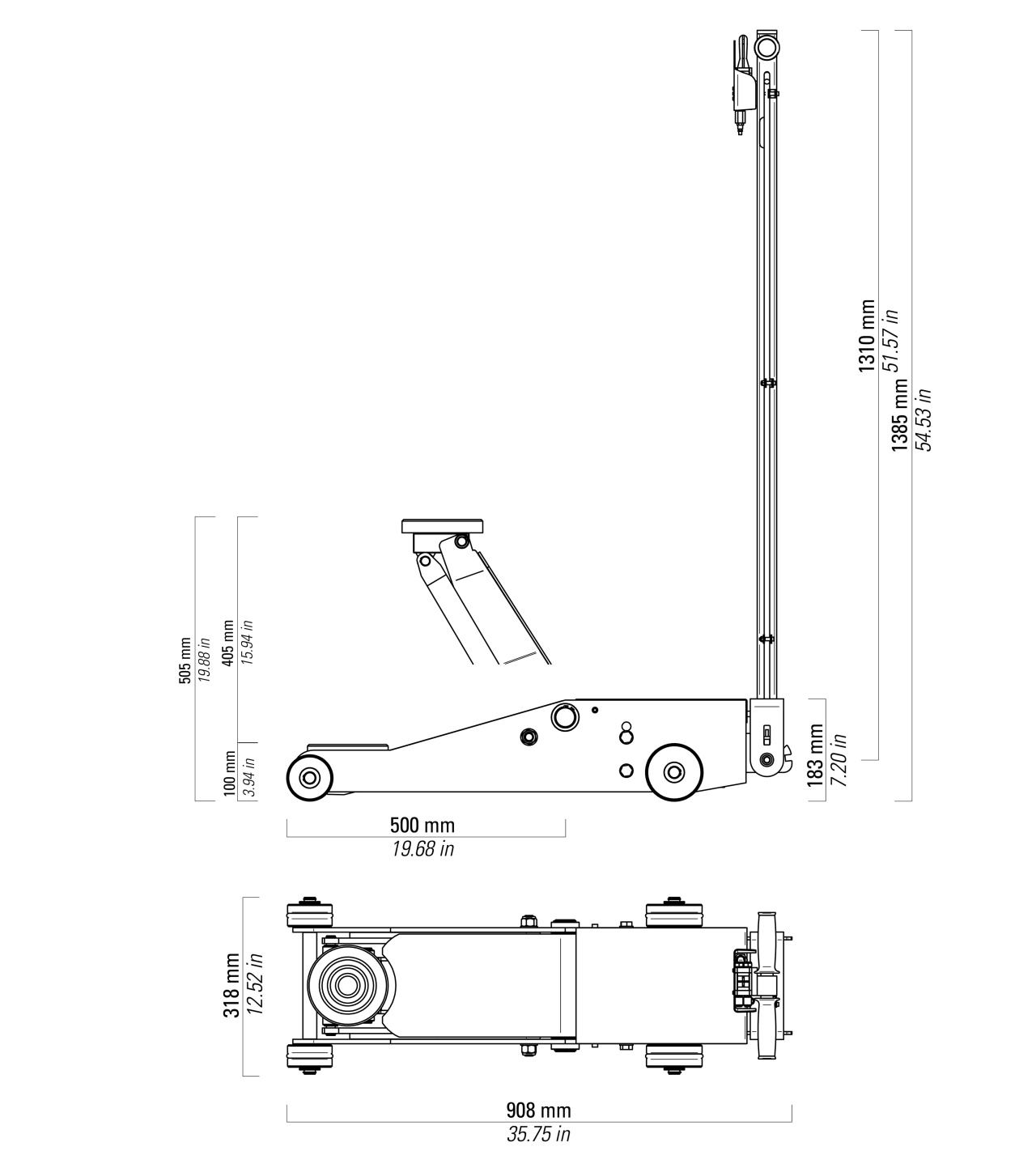

Size and dimensions

Air-hydraulic trolley jack - YAK 109/C print
