YAK 1820H - Gato oleoneumático para fosa colgado

Our new range of suspended pit jacks is designed for lifting heavy vehicles and is also the ideal solution for the service and maintenance of gearboxes and differentials.

All models are equipped with a new magnetic remote control, which allows the operator to use them in total safety and freedom of movement. They are also equipped with a double descent valve that guarantees a perfect seal and a controlled speed during descent under load.

The customer can choose between two stroke options (600mm or 800mm); two possible capacities (15 or 20 tons); type of beam and wheels.



Capacidad: 20 t
22 ton
Peso neto: 313 kg
690 lb
Presión de alimentación: 8-10 bar
116-145 psi
Consumo de aire: 600 Nl/min

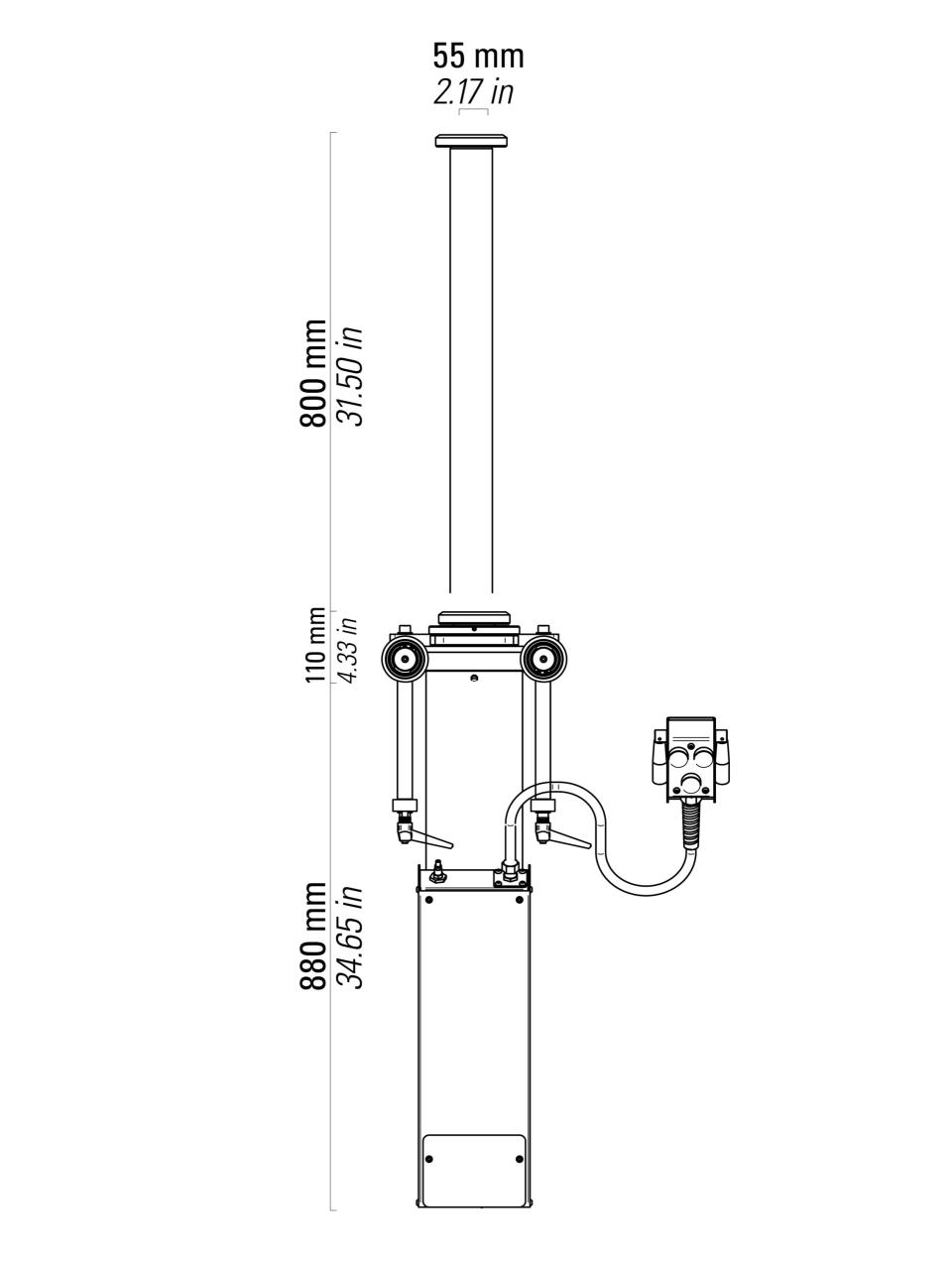

Carrera: 800 mm
31.5 in
Altura mín.: 990 mm
39 in
Número pistones: 1
Carrera pistones: 800 mm
31.5 in
YAK 1820H
Accesorios compatibles:
Adaptador A01754
Adaptador A01758
Adaptador A01760
Apoyo para cambios A00206
Apoyo para cambios A00207
Traviesa A00221
Platillo A04276
Puente de soporte A09520
