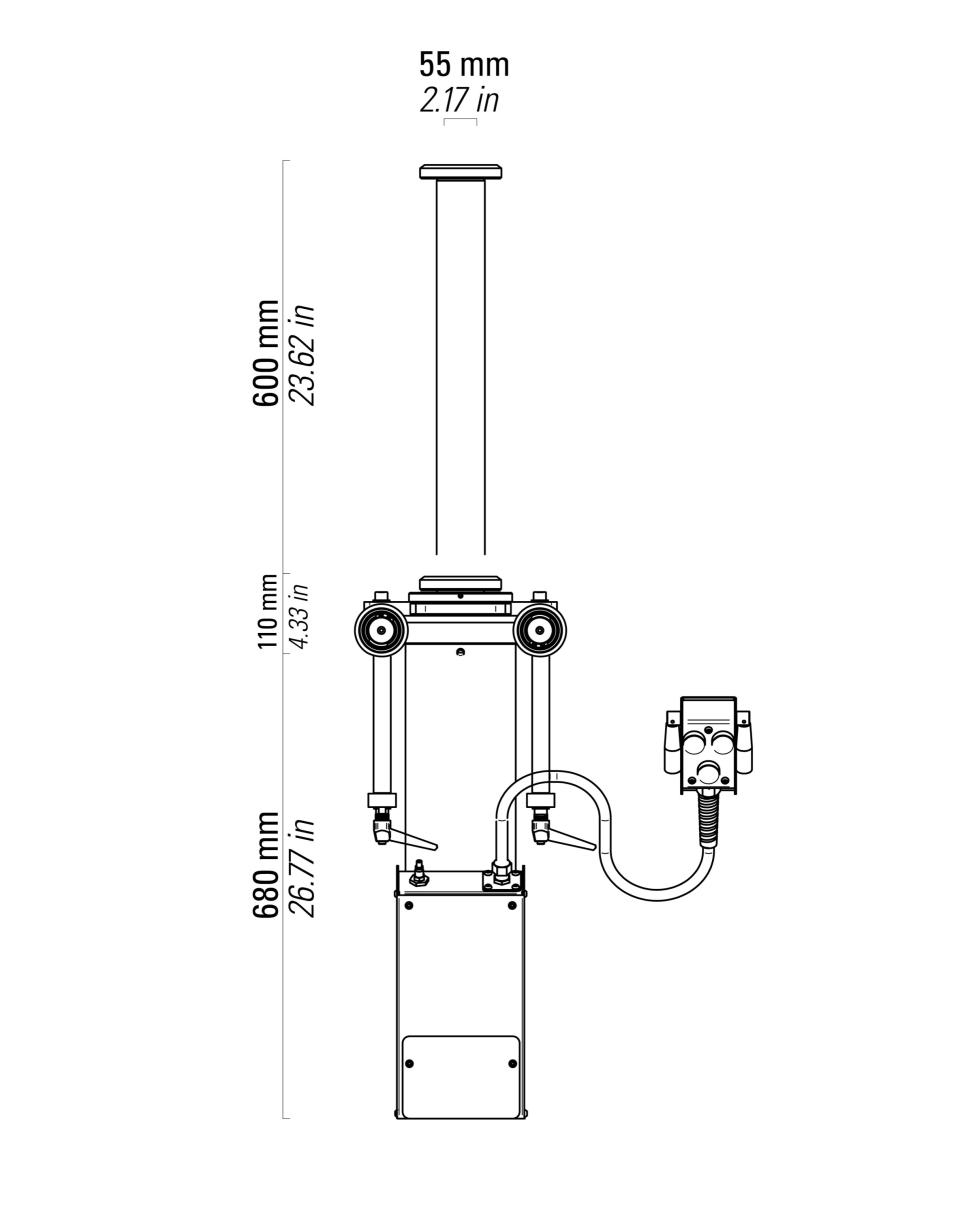

YAK 1620H - Macaco oleopneumático de fossa suspenso

Our new range of suspended pit jacks is designed for lifting heavy vehicles and is also the ideal solution for the service and maintenance of gearboxes and differentials.

All models are equipped with a new magnetic remote control, which allows the operator to use them in total safety and freedom of movement. They are also equipped with a double descent valve that guarantees a perfect seal and a controlled speed during descent under load.

The customer can choose between two stroke options (600mm or 800mm); two possible capacities (15 or 20 tons); type of beam and wheels.

Capacidade: 20 t
22 ton
Peso líquido: 333 Kg
734 lb
Pressão de alimentação: 8-10 bar
116-145 psi
Consumo de ar: 600 nl/min
Curso: 600 mm
23.6 in
Altura mín.: 790 mm
31.1 in
Número dos Tramos: 1
Curso dos Tramos: 600 mm
23.6 in
YAK 1620H
Acessórios compatíveis:
Adaptador A01754
Adaptador A01758
Adaptador A01760
Berço para mudanças A00206
Berço para mudanças A00207
Travessa A00221
Placa de apoio A04276
Bloco de segurança A05951
Travessa A09054
